Name: ATMEGA2560-16CUR
Brand: Microchip Technology
SKU: ATMEGA2560-16CUR
Availability: InStock

new-10%

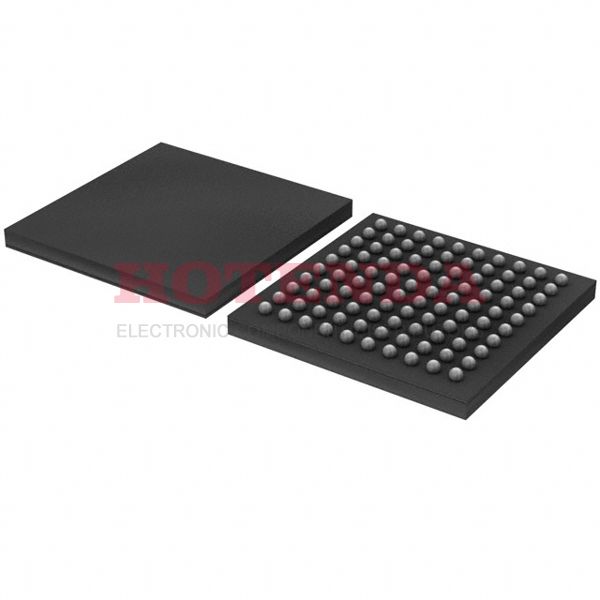

ATMEGA2560-16CUR

Manufacturer part number:ATMEGA2560-16CUR

Manufacturer:Microchip Technology

Description:256KB 128K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA2560 100 Pin 16MHz 5V 100-TFBGA

Case Package:SOT-23

Datasheet:ATMEGA2560-16CUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Copper, Silver, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-CBGA (9x9)
Number of Terminals	100
Mounting Style	SMD/SMT
Data Converters	A/D 16x10b
Number of I/Os	86 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	AVR
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA2560
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	86
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	AVR® ATmega
Published	2007
JESD-609 Code	e1
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Finish	TIN SILVER COPPER
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	16MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATMEGA2560
JESD-30 Code	S-PBGA-B100
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Power Supplies	5V
Temperature Grade	INDUSTRIAL
Interface	EBI/EMI, I2C, SPI, UART, USART
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	86
Speed	16MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	256KB 128K x 16
Connectivity	EBI/EMI, I2C, SPI, UART/USART
Supply Current-Max	14 mA
Bit Size	8
Data Converter	A/D 16x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	6
Address Bus Width	16
Product Type	8-bit Microcontrollers - MCU
ROM (words)	131072
EEPROM Size	4K x 8
CPU Family	AVR RISC
External Data Bus Width	8
RAM (bytes)	8192
ROM Programmability	FLASH
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Length	9mm
Height Seated (Max)	1.2mm
Width	9 mm
RoHS Status	ROHS3 Compliant

ATMEGA2560-16CUR Product Details

ATMEGA2560-16CUR Overview

In a 100-TFBGA package, the MCU is available. 86 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. AVR® ATmega series components make up this electrical component. 256KB 128K x 16 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 100 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 256kB is the memory size of the part. The base part number ATMEGA2560 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 16MHz. The device works in YES PWM channels. Located on the chip are 100 pins. The clock has 6 timers or counters on it. In this device, there is a AVR RISC CPU embedded within it. I would like to mention a few additional features such as ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ in order to name a few.
