ATMEGA2560-16AUR

Name: ATMEGA2560-16AUR
Brand: Microchip Technology
SKU: ATMEGA2560-16AUR
Availability: InStock

new-10%

ATMEGA2560-16AUR

Manufacturer part number:ATMEGA2560-16AUR

Manufacturer:Microchip Technology

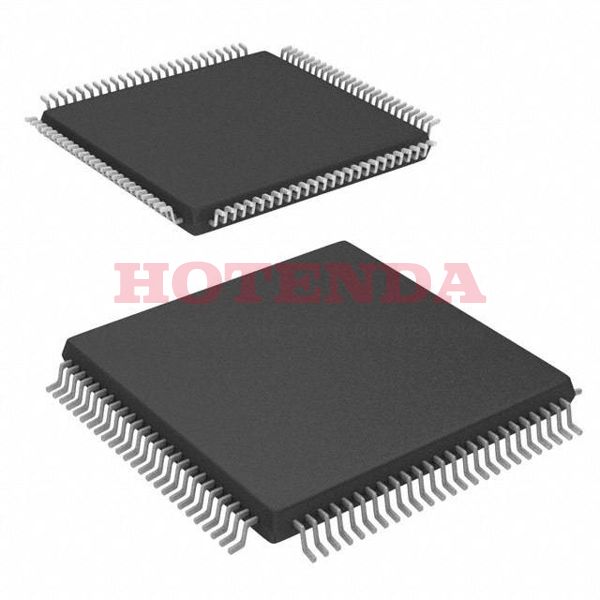

Description:256KB 128K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA2560 100 Pin 16MHz 5V 100-TQFP

Case Package:SOT-23

Datasheet:ATMEGA2560-16AUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TQFP
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-TQFP (14x14)
Number of Terminals	100
Mounting Style	SMD/SMT
Interfaces	JTAG/TWI/SPI/USART
Data Converters	A/D 16x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA2560
Mfr	Microchip Technology
Product Status	Active
MSL	MSL 3 - 168 hours
Qualification	-
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	AVR
RoHS	Details
Package Shape	SQUARE
Number of I/O Lines	86
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	AVR® ATmega
Published	2007
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	16MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATMEGA2560
JESD-30 Code	S-PQFP-G100
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Power Supplies	5V
Temperature Grade	INDUSTRIAL
Interface	EBI/EMI, I2C, SPI, UART, USART
Memory Size	8kB
Oscillator Type	Internal
Number of I/O	86
Speed	16MHz
RAM Size	8K x 8
Memory Type	FLASH, OTP
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	256KB 128K x 16
Connectivity	EBI/EMI, I2C, SPI, UART/USART
Supply Current-Max	14 mA
Bit Size	8
Data Converter	A/D 16x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	6
Address Bus Width	16
Product Type	8-bit Microcontrollers - MCU
ROM (words)	131072
EEPROM Size	4K x 8
CPU Family	AVR RISC
External Data Bus Width	8
RAM (bytes)	8192
ROM Programmability	FLASH
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Length	14mm
Height Seated (Max)	1.2mm
Width	14 mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free
