Name: ATMEGA168PA-ANR
Brand: Microchip Technology
SKU: ATMEGA168PA-ANR
Price: 2.52000 USD
Availability: InStock

new-10%

ATMEGA168PA-ANR

Manufacturer part number:ATMEGA168PA-ANR

Manufacturer:Microchip Technology

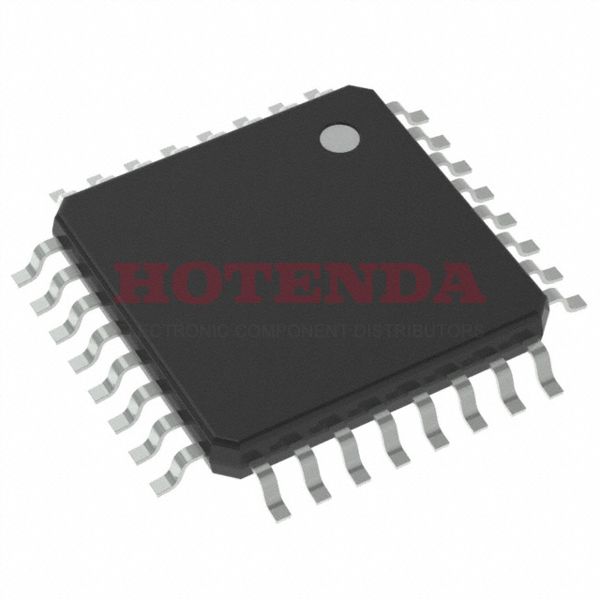

Description:16KB 8K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA168PA 32 Pin 20MHz 5V 32-TQFP

Case Package:SOT-23

Datasheet:ATMEGA168PA-ANR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Surface Mount	YES
Package / Case	32-TQFP
Mounting Type	Surface Mount
Mount	Surface Mount
Contact Plating	Tin
Number of Pins	32
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Mounting Style	SMD/SMT
Interfaces	SPI/USART
Data Converters	A/D 8x10b
Number of I/Os	23 I/O
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	AVR
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA168
Mfr	Microchip Technology
Package Shape	SQUARE
Number of I/O Lines	23
Product Status	Active
Published	1997
Series	AVR® ATmega
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~105°C TA
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATMEGA168PA
JESD-30 Code	S-PQFP-G32
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2/5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Interface	I2C, SPI, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	23
Speed	20MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 8K x 16
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	9mA
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	16384
EEPROM Size	512 x 8
On Chip Program ROM Width	8
CPU Family	AVR RISC
RAM (bytes)	1024
ROM Programmability	FLASH
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Width	7 mm
Height Seated (Max)	1.2mm
Length	7mm
RoHS Status	ROHS3 Compliant

ATMEGA168PA-ANR Product Details

ATMEGA168PA-ANR Overview

In a 32-TQFP package, the MCU is available. 23 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~105°C TA that is operated by this Microcontroller. AVR® ATmega series components make up this electrical component. 16KB 8K x 16 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 32 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 16kB is the memory size of the part. The base part number ATMEGA168PA can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 20MHz. The device works in YES PWM channels. Located on the chip are 32 pins. The clock has 3 timers or counters on it. In this device, there is a AVR RISC CPU embedded within it. I would like to mention a few additional features such as ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 10 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ in order to name a few.
