Name: ATMEGA168PA-15AZ
Brand: Microchip Technology
SKU: ATMEGA168PA-15AZ
Availability: InStock

new-10%

ATMEGA168PA-15AZ

Manufacturer part number:ATMEGA168PA-15AZ

Manufacturer:Microchip Technology

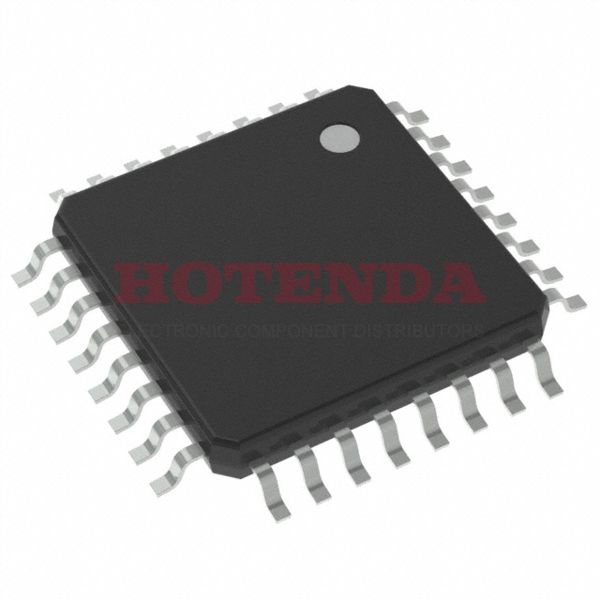

Description:16KB 8K x 16 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATmega Series ATMEGA168PA 32 Pin 16MHz 5V 32-TQFP

Case Package:SOT-23

Datasheet:ATMEGA168PA-15AZ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-TQFP
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Data Converters	A/D 8x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA168
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	23
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATmega
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Terminal Finish	Matte Tin (Sn)
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	16MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	ATMEGA168PA
JESD-30 Code	S-PQFP-G32
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5 V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	4.5V
Interface	I2C, SPI, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	23
Speed	16MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 8K x 16
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	16 mA
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	3
ROM (words)	8192
EEPROM Size	512 x 8
CPU Family	AVR RISC
Screening Level	AEC-Q100
RAM (bytes)	1024
ROM Programmability	FLASH
Length	7mm
Height Seated (Max)	1.2mm
Width	7 mm
RoHS Status	ROHS3 Compliant

ATMEGA168PA-15AZ Product Details

ATMEGA168PA-15AZ Overview

It comes in a 32-TQFP package. It has a number of 23I/Os. The Mounting Type of the device is Surface Mount. It is based on the 8-Bit. The It?ˉs Program Memory Type is FLASH. The device runs in -40??C~125??C TA Operating Temperature. It runs in Automotive, AEC-Q100, AVR? ATmega Series.

ATMEGA168PA-15AZ Features

Automotive, AEC-Q100, AVR? ATmega series
Base part number of ATMEGA168PA
Additional features of ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
32 Terminals
Based on the 8-Bit
Comes with 32 Pins

ATMEGA168PA-15AZ Applications

There are a lot of Microchip Technology ATMEGA168PA-15AZ Microcontroller applications. ATMEGA168PA-15AZ MCU is usually applied for Measurement and control field, Consumer electronics products, Network communication, mobile communication, Office automation equipment and computer peripherals, Industrial control Instrumentation and process control, Agriculture, transportation, Navigation control, Network application, Metering & measurement, Day to day life, Safety, Medical instruments and Automobile industry.
