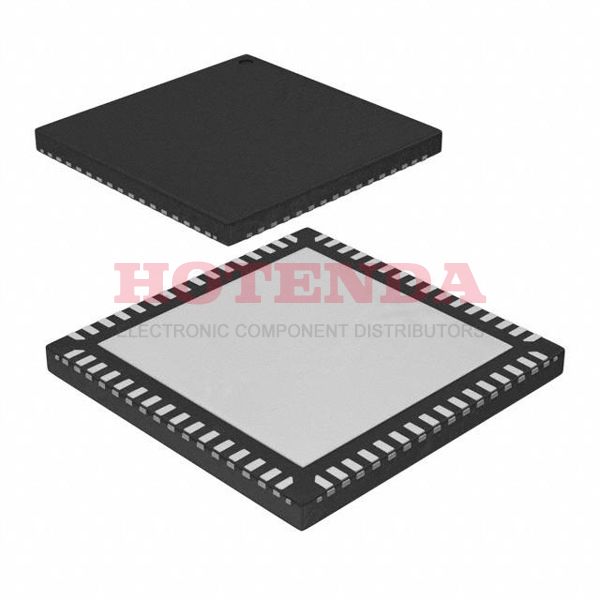

Name: ATMEGA165A-MUR
Brand: Microchip Technology
SKU: ATMEGA165A-MUR
Price: 1.51000 USD
Availability: InStock

new-10%

ATMEGA165A-MUR

Manufacturer part number:ATMEGA165A-MUR

Manufacturer:Microchip Technology

Description:16KB 8K x 16 FLASH AVR 8-Bit Microcontroller AVR® ATmega Series ATMEGA165A 64 Pin 16MHz 5V 64-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATMEGA165A-MUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-QFN (9x9)
Number of Terminals	64
Mounting Style	SMD/SMT
Interfaces	SPI/USART
Data Converters	A/D 8x10b
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	AVR
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATMEGA165
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	54
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	AVR® ATmega
Published	1997
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Additional Feature	ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 8 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	ATMEGA165A
JESD-30 Code	S-PQCC-N64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2/5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	4.5V
Interface	SPI, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	54
Speed	16MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	1.8V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 8K x 16
Connectivity	SPI, UART/USART, USI
Supply Current-Max	9.5 mA
Bit Size	8
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1 mm
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	8192
EEPROM Size	512 x 8
CPU Family	AVR RISC
RAM (bytes)	1024
ROM Programmability	FLASH
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Length	9mm
Height Seated (Max)	1mm
Width	9 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

ATMEGA165A-MUR Product Details

ATMEGA165A-MUR Overview

In a 64-VFQFN Exposed Pad package, the MCU is available. 54 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. AVR® ATmega series components make up this electrical component. 16KB 8K x 16 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 64 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 16kB is the memory size of the part. The base part number ATMEGA165A can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 16MHz. The device works in YES PWM channels. Located on the chip are 64 pins. The clock has 3 timers or counters on it. In this device, there is a AVR RISC CPU embedded within it. I would like to mention a few additional features such as ALSO OPERATES AT 2.7 V MINIMUM SUPPLY AT 8 MHZ AND 1.8 V MINIMUM SUPPLY AT 4 MHZ in order to name a few.
