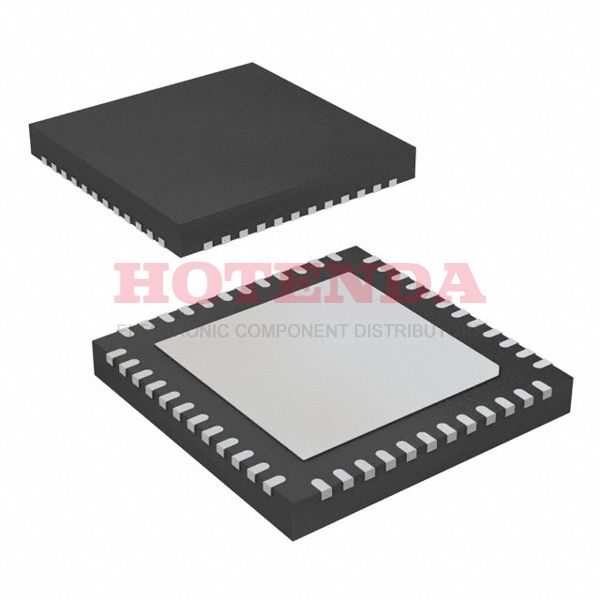

Name: ATA6613P-PLPW
Brand: Microchip Technology
SKU: ATA6613P-PLPW
Availability: InStock

new-10%

ATA6613P-PLPW

Manufacturer part number:ATA6613P-PLPW

Manufacturer:Microchip Technology

Description:16KB 16K x 8 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® ATA66 LIN-SBC Series ATA6613 48 Pin 16 MHz 48-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATA6613P-PLPW Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Mount	Surface Mount
Number of Pins	48
Supplier Device Package	48-QFN (7x7)
Data Converters	A/D 8x10b
Package	Tape & Reel (TR)
Base Product Number	ATA6613
Mfr	Microchip Technology
Product Status	Obsolete
Number of I/Os	23
RoHS	Compliant
Operating Temperature	-40°C~125°C TC
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® ATA66 LIN-SBC
Published	1997
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
Max Operating Temperature	125 °C
Min Operating Temperature	-40 °C
Frequency	16 MHz
Base Part Number	ATA6613
Operating Supply Voltage	5 V
Interface	I2C, LIN, SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	4.5 V
Memory Size	16 kB
Oscillator Type	Internal
Number of I/O	23
Speed	16MHz
RAM Size	1K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	16KB 16K x 8
Connectivity	I2C, LINbus, SPI, UART/USART
Data Converter	A/D 8x10b
Data Bus Width	8 b
Number of Timers/Counters	3
Core Architecture	AVR
EEPROM Size	512 x 8
Max Frequency	16 MHz
Number of Programmable I/O	23
Baud Rate	20 kbaud
RoHS Status	ROHS3 Compliant
REACH SVHC	No SVHC

ATA6613P-PLPW Product Details

ATA6613P-PLPW Overview

There is a 48-VFQFN Exposed Pad package available. The board has 23 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~125°C TC is the temperature range at which this Microcontroller operates. Automotive, AEC-Q100, AVR® ATA66 LIN-SBC-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 16KB 16K x 8. Powered by a AVR Core processor. This IC part has a memory size of 16 kB. There are a number of alternatives to the base part number ATA6613 that you can find. Performing well when operated at frequency 16 MHz can be achieved. On the chip, there are 48 pins that can be accessed. It comes with 3 timers/counters that can be set up. FLASH memory is one of the features of this equipment. The CPU is based on AVR cores. There are 23 Programmable I/Os on this computer.
