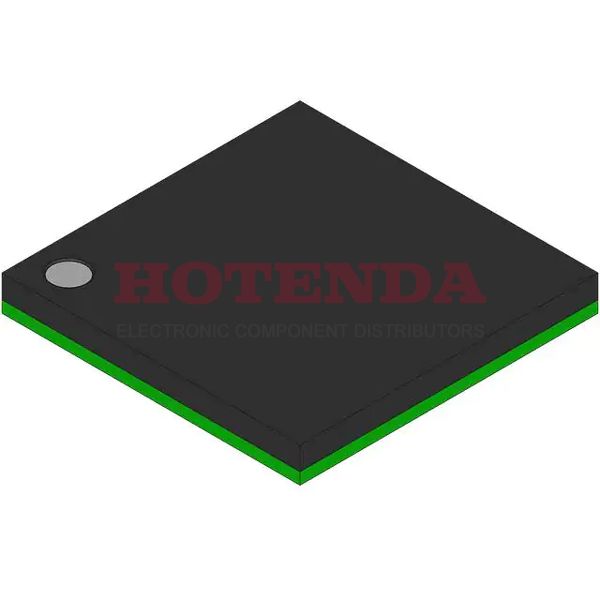

Name: AT91SAM7XC256B-CU
Brand: Microchip Technology
SKU: AT91SAM7XC256B-CU
Availability: InStock

new-10%

AT91SAM7XC256B-CU

Manufacturer part number:AT91SAM7XC256B-CU

Manufacturer:Microchip Technology

Description:256KB 256K x 8 FLASH ARM7® 16/32-Bit Microcontroller SAM7XC Series AT91SAM7XC256 100 Pin 55MHz 100-TFBGA

Case Package:SOT-23

Datasheet:AT91SAM7XC256B-CU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Number of Pins	100
Supplier Device Package	100-TFBGA (9x9)
Data Converters	A/D 8x10b
Package	Tray
Base Product Number	AT91SAM7XC256
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	SAM7XC
Published	1997
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Frequency	55MHz
Base Part Number	AT91SAM7XC256
Operating Supply Voltage	1.8V
Interface	CAN, Ethernet, I2C, SPI, UART, USART, USB
Max Supply Voltage	1.95V
Min Supply Voltage	1.65V
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	62
Speed	55MHz
RAM Size	64K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.65V~1.95V
Core Processor	ARM7®
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	CANbus, Ethernet, I2C, SPI, SSC, UART/USART, USB
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Data Bus Width	32b
Number of Timers/Counters	3
Core Architecture	ARM
EEPROM Size	--
Max Frequency	55MHz
Number of Programmable I/O	62
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

AT91SAM7XC256B-CU Product Details

AT91SAM7XC256B-CU Overview

There is a 100-TFBGA package available. The board has 62 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16/32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. SAM7XC-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 256KB 256K x 8. Powered by a ARM7® Core processor. This IC part has a memory size of 256kB. There are a number of alternatives to the base part number AT91SAM7XC256 that you can find. Performing well when operated at frequency 55MHz can be achieved. On the chip, there are 100 pins that can be accessed. It comes with 3 timers/counters that can be set up. FLASH memory is one of the features of this equipment. The CPU is based on ARM cores. There are 62 Programmable I/Os on this computer.
