Name: AT91SAM7X256B-CU
Brand: Microchip Technology
SKU: AT91SAM7X256B-CU
Availability: InStock

new-10%

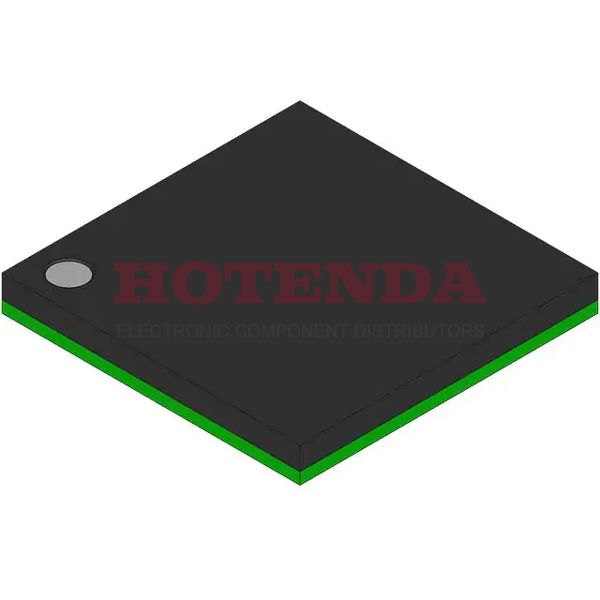

AT91SAM7X256B-CU

Manufacturer part number:AT91SAM7X256B-CU

Manufacturer:Microchip Technology

Description:256KB 256K x 8 FLASH ARM7® 16/32-Bit Microcontroller SAM7X Series AT91SAM7X256 100 Pin 55MHz 1.8V 100-TFBGA

Case Package:SOT-23

Datasheet:AT91SAM7X256B-CU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Copper, Silver, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Number of Pins	100
Supplier Device Package	100-TFBGA (9x9)
Data Converters	A/D 8x10b
Package	Tray
Base Product Number	AT91SAM7X256
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	SAM7X
Published	1997
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	260
Supply Voltage	1.8V
Terminal Pitch	0.8mm
Frequency	55MHz
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	AT91SAM7X256
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	1.95V
Interface	CAN, Ethernet, I2C, I2S, SPI, UART, USART, USB
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	62
Speed	55MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.65V~1.95V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM7®
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16/32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	CANbus, Ethernet, I2C, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 8x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
Core Architecture	ARM
EEPROM Size	--
On Chip Program ROM Width	8
Length	9mm
Height Seated (Max)	1.1mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

AT91SAM7X256B-CU Product Details

AT91SAM7X256B-CU Overview

Packaged in a 100-TFBGA format, this MCU is available in a compact size. There are 62 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Surface Mount mounting type. 16/32-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The SAM7X series includes this electrical component. There is 256KB 256K x 8 bytes of program memory in MCU, which corresponds to the size of the program. With a ARM7® Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. During the manufacturing process, 100 terminations were applied to the IC chip. 32-bits are used in Microcontroller. The MCU chip's supply output is 1.8V volts. Currently, MCU chip has YES DMA channels. 256kB memory size belongs to the Chip part. Alternatives can be found by looking at the base part number AT91SAM7X256. In the case of 55MHz frequency operation, it can perform efficiently. There are YES PWM channels on the device. The chip has 100 pins. The clock has 3 timers/counters to keep track of the time. With ARM core architecture, it offers high performance.
