Name: AT91M40400-33AC
Brand: Microchip Technology
SKU: AT91M40400-33AC
Availability: InStock

new-10%

AT91M40400-33AC

Manufacturer part number:AT91M40400-33AC

Manufacturer:Microchip Technology

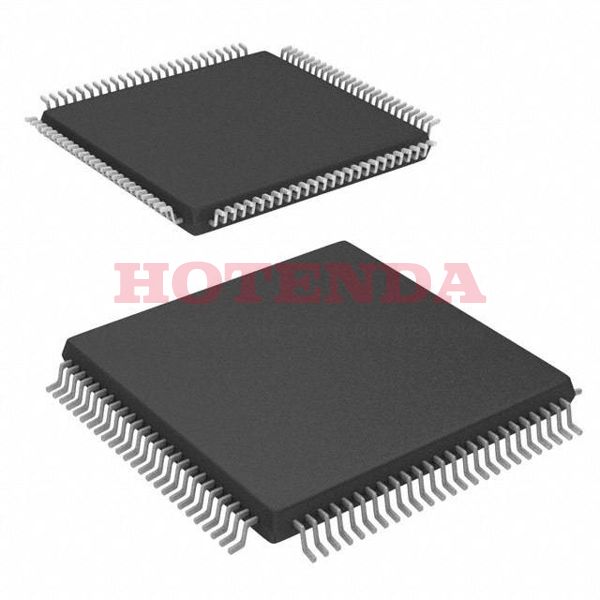

Description:-- ROMless ARM7® 16/32-Bit Microcontroller AT91SAM Series AT91M40400 100-TQFP

Case Package:SOT-23

Datasheet:AT91M40400-33AC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	100-TQFP
Surface Mount	YES
Supplier Device Package	100-TQFP (14x14)
Number of Terminals	100
Data Converters	--
Package	Tray
Base Product Number	AT91M40400
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Atmel Corporation
Number of I/O Lines	32
Operating Temperature	0°C~70°C
Packaging	Tray
Series	AT91SAM
Published	2000
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
ECCN Code	3A991.A.2
Terminal Finish	Tin/Lead (Sn/Pb)
Additional Feature	4K BYTES INTERNAL RAM
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	GULL WING
Terminal Pitch	0.5 mm
Reach Compliance Code	compliant
Base Part Number	AT91M40400
Pin Count	100
JESD-30 Code	S-PQFP-G100
Qualification Status	Not Qualified
Power Supplies	3/3.3 V
Temperature Grade	COMMERCIAL
Oscillator Type	External
Number of I/O	32
Speed	33MHz
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM7®
Peripherals	WDT
Program Memory Type	ROMless
Core Size	16/32-Bit
Program Memory Size	--
Connectivity	EBI/EMI, UART/USART
Supply Current-Max	77 mA
Bit Size	32
Has ADC	NO
DMA Channels	NO
PWM Channels	NO
DAC Channels	NO
Seated Height-Max	1.6 mm
Address Bus Width	24
ROM (words)	0
EEPROM Size	--
CPU Family	ARM7
External Data Bus Width	16
RAM (bytes)	4096
Width	14 mm
Length	14 mm
RoHS Status	Non-RoHS Compliant

AT91M40400-33AC Product Details

AT91M40400-33AC Overview

There is a 100-TQFP package available. The board has 32 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 16/32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is ROMless. 0°C~70°C is the temperature range at which this Microcontroller operates. AT91SAM-series components are electrical components. In the case of this Microcontroller, the memory size of the program is --. Powered by a ARM7® Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. As a result, this Microcontroller comes with a 32-bit size. A total of NO DMA channels are available. There are a number of alternatives to the base part number AT91M40400 that you can find. Using NO PWM channels, the device works. The pins counted are 100. The device is powered by the the ARM7 CPU family that is embedded in it. In addition to these features, there are a number of other ones, such as this one: 4K BYTES INTERNAL RAM.
