Name: AT90PWM3B-16SUR
Brand: Microchip Technology
SKU: AT90PWM3B-16SUR
Availability: InStock

new-10%

AT90PWM3B-16SUR

Manufacturer part number:AT90PWM3B-16SUR

Manufacturer:Microchip Technology

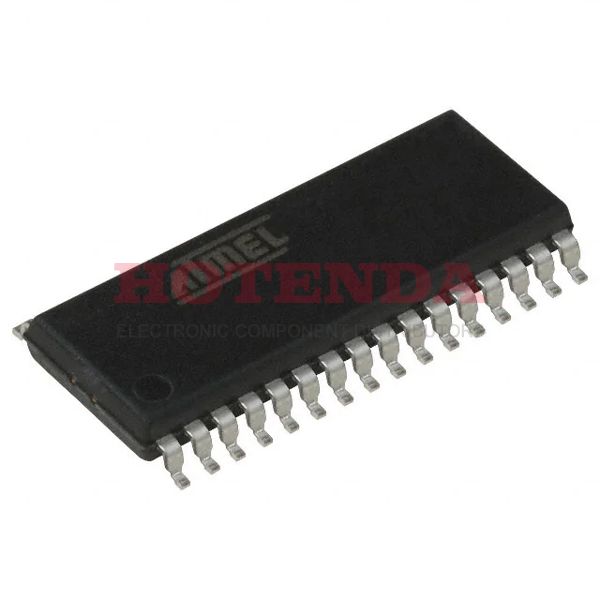

Description:8KB 8K x 8 FLASH AVR 8-Bit Microcontroller AVR® 90PWM Lighting Series AT90PWM3B 32 Pin 16MHz 32-SOIC (0.295, 7.50mm Width)

Case Package:SOT-23

Datasheet:AT90PWM3B-16SUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-SOIC (0.295, 7.50mm Width)
Number of Pins	32
Supplier Device Package	32-SOIC
Data Converters	A/D 11x10b; D/A 1x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	AT90PWM3B
Mfr	Microchip Technology
Product Status	Obsolete
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	AVR® 90PWM Lighting
Published	2008
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Max Operating Temperature	105°C
Min Operating Temperature	-40°C
Frequency	16MHz
Base Part Number	AT90PWM3B
Interface	EBI/EMI, SPI, UART, USART, USB
Max Supply Voltage	5.5V
Min Supply Voltage	2.7V
Memory Size	8kB
Oscillator Type	Internal
Number of I/O	27
Speed	16MHz
RAM Size	512 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 8K x 8
Connectivity	SPI, UART/USART
Data Converter	A/D 11x10b; D/A 1x10b
Watchdog Timer	Yes
Data Bus Width	8b
Number of Timers/Counters	2
Core Architecture	AVR
EEPROM Size	512 x 8
Max Frequency	16MHz
Number of Programmable I/O	27
RoHS Status	ROHS3 Compliant

AT90PWM3B-16SUR Product Details

AT90PWM3B-16SUR Overview

The package is 32-SOIC (0.295, 7.50mm Width)-shaped. There are 27 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 8-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~105°C TA are operated by this Microcontroller. It is part of the AVR® 90PWM Lighting series of electrical components. Having a size of 8KB 8K x 8, Microcontroller has a program memory of X bytes. A AVR Core Processor is at the core of this Microcontroller. 8kB is the size of the memory in the IC part. Using the base part number AT90PWM3B, you will be able to find alternatives for the part. Using a 16MHz frequency, this electronic part can perform efficiently. On the chip, 32 pins are accessible. In total, there are 2 timers/counters on the device. There is FLASH memory on this piece of equipment. In addition, it comes with a AVR core architecture. It has 27 Programmable Input/Output pins that can be programmed.
