Name: AT90PWM3-16MQ
Brand: Microchip Technology
SKU: AT90PWM3-16MQ
Price: 3.00000 USD
Availability: InStock

new-10%

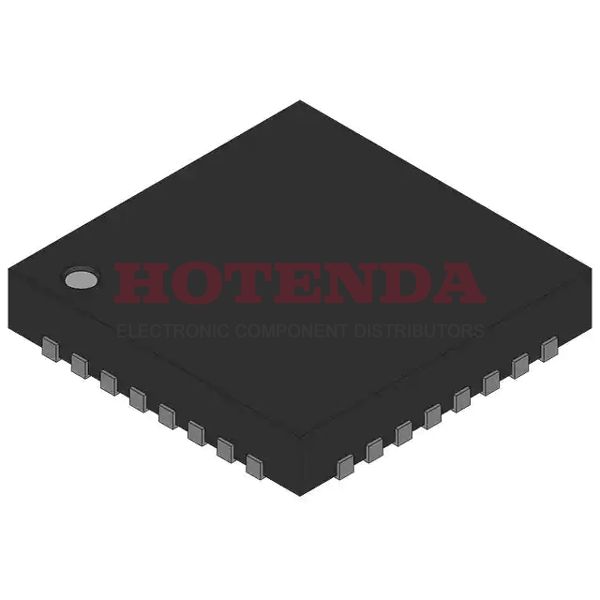

AT90PWM3-16MQ

Manufacturer part number:AT90PWM3-16MQ

Manufacturer:Microchip Technology

Description:8KB 8K x 8 FLASH AVR 8-Bit Microcontroller AVR® 90PWM Lighting Series AT90PWM3 32 Pin 16MHz 3V 32-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:AT90PWM3-16MQ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	20 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-VQFN Exposed Pad
Surface Mount	YES
Number of Pins	32
Supplier Device Package	32-QFN (7x7)
Number of Terminals	32
Mounting Style	SMD/SMT
Interfaces	SPI/USART
Instruction Set Architecture	RISC
Clock Freq	16(MHz)
DAC Resolution	10
Operating Temperature Classification	Industrial
Package Type	QFN EP
Number of Timers - General Purpose	2
Operating Temp Range	-40C to 105C
# I/Os (Max)	27
Interface Type	SPI/USART
Total Internal Ram Size	512B(kB)
Device Core Size	8(b)
Operating Supply Voltage (Max)	5.5(V)
Operating Supply Voltage (Typ)	3.3/5(V)
Rad Hardened	No
Operating Supply Voltage (Min)	2.7(V)
Programmable	Yes
Mounting	Surface Mount
Data Converters	A/D 11x10b; D/A 1x10b
Package	Tape & Reel (TR)
Base Product Number	AT90PWM3
Mfr	Microchip Technology
Product Status	Active
Number of I/Os	27 I/O
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	SQUARE
Number of I/O Lines	27
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	AVR® 90PWM Lighting
Published	2008
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Terminal Finish	MATTE TIN
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	AT90PWM3
Pin Count	32
JESD-30 Code	S-XQCC-N32
Qualification Status	Not Qualified
Operating Temperature (Max)	105C
Operating Temperature (Min)	-40C
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5V
Temperature Grade	INDUSTRIAL
Interface	SPI, UART, USART
Memory Size	8kB
Oscillator Type	Internal
Number of I/O	27
Speed	16MHz
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 8K x 8
Connectivity	SPI, UART/USART
Supply Current-Max	24 mA
Bit Size	8
Data Converter	A/D 11x10b; D/A 1x10b
Watchdog Timer	Yes
Access Time	16 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	0.9 mm
Number of Timers/Counters	2
Product Type	8-bit Microcontrollers - MCU
ROM (words)	8192
EEPROM Size	512 x 8
CPU Family	AVR RISC
RAM (bytes)	512
Number of ADC Channels	11 Channel
ROM Programmability	FLASH
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Length	7mm
Height Seated (Max)	0.9mm
Width	7 mm
Height	0.95 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

AT90PWM3-16MQ Product Details

AT90PWM3-16MQ Overview

In a 32-VQFN Exposed Pad package, the MCU is available. 27 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~105°C TA that is operated by this Microcontroller. AVR® 90PWM Lighting series components make up this electrical component. 8KB 8K x 8 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 32 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 3V volt supply output on the chip. DMA channels number NO. 8kB is the memory size of the part. The base part number AT90PWM3 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 16MHz. The device works in YES PWM channels. Located on the chip are 32 pins. The clock has 2 timers or counters on it. There are 32 pins on it. In this device, there is a AVR RISC CPU embedded within it. I would like to mention a few additional features such as ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8 MHZ in order to name a few. A total of 11 Channel channels of ADC are available on this device.
