Name: AT90LS4433-4AC
Brand: Microchip Technology
SKU: AT90LS4433-4AC
Availability: InStock

new-10%

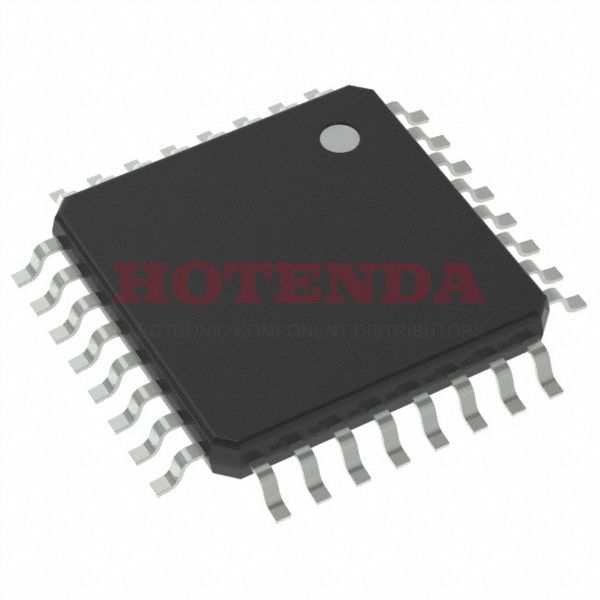

AT90LS4433-4AC

Manufacturer part number:AT90LS4433-4AC

Manufacturer:Microchip Technology

Description:4KB 2K x 16 FLASH AVR 8-Bit Microcontroller AVR® 90LS Series AT90LS4433 32-TQFP

Case Package:SOT-23

Datasheet:AT90LS4433-4AC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	32-TQFP
Surface Mount	YES
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Data Converters	A/D 6x10b
Package	Tray
Base Product Number	AT90LS4433
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Atmel Corporation
Number of I/O Lines	20
Operating Temperature	0°C~70°C
Packaging	Tray
Series	AVR® 90LS
Published	2003
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Terminal Finish	Tin/Lead (Sn/Pb)
Additional Feature	256 BYTES EEPROM; ANALOG COMPARATOR; PRESCALER
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	240
Terminal Pitch	0.8 mm
Reach Compliance Code	unknown
Base Part Number	AT90LS4433
Pin Count	32
JESD-30 Code	S-PQFP-G32
Qualification Status	Not Qualified
Power Supplies	3/5 V
Temperature Grade	COMMERCIAL
Oscillator Type	External
Number of I/O	20
Speed	4MHz
RAM Size	128 x 8
Voltage - Supply (Vcc/Vdd)	2.7V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	4KB 2K x 16
Connectivity	SPI, UART/USART
Bit Size	8
Data Converter	A/D 6x10b
Has ADC	YES
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
ROM (words)	4096
EEPROM Size	256 x 8
CPU Family	AVR RISC
RAM (bytes)	128
ROM Programmability	FLASH
Width	7 mm
Length	7 mm
RoHS Status	Non-RoHS Compliant

AT90LS4433-4AC Product Details

AT90LS4433-4AC Overview

Packaged in a 32-TQFP format, this MCU is available in a compact size. There are 20 I/Os on the Microcontroller. It is important to note that the Microcontroller has a Surface Mount mounting type. 8-Bit core is the basis for this Microcontroller. This program has a type of memory called FLASH for this MCU's program memory. Temperatures in this range are operated by this Microcontroller. The AVR® 90LS series includes this electrical component. There is 4KB 2K x 16 bytes of program memory in MCU, which corresponds to the size of the program. With a AVR Core processor, MCU is equipped with the latest technology available. This is a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. 8-bits are used in Microcontroller. Currently, MCU chip has NO DMA channels. Alternatives can be found by looking at the base part number AT90LS4433. There are YES PWM channels on the device. 32 pins are counted on this board. This device is embedded with a AVR RISC processor family, which is a powerful and efficient CPU. As a few examples, there are additional features like 256 BYTES EEPROM; ANALOG COMPARATOR; PRESCALER that are available in the software.
