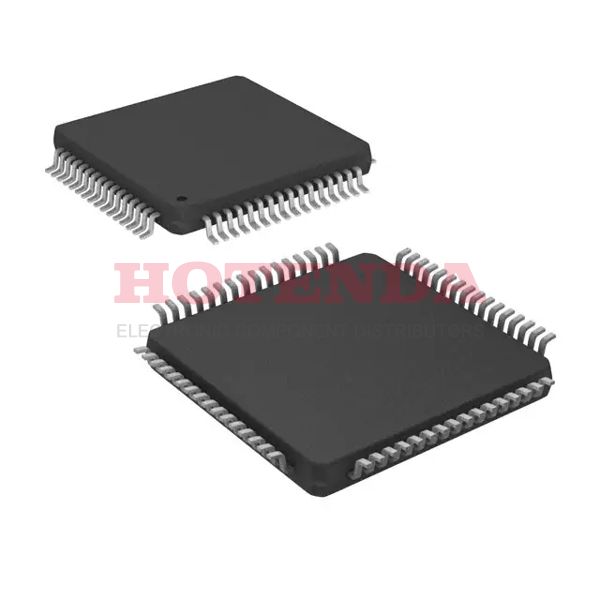

Name: AT90CAN32-15AT
Brand: Microchip Technology
SKU: AT90CAN32-15AT
Availability: InStock

new-10%

AT90CAN32-15AT

Manufacturer part number:AT90CAN32-15AT

Manufacturer:Microchip Technology

Description:32KB 32K x 8 FLASH AVR 8-Bit Microcontroller Automotive, AEC-Q100, AVR® 90CAN Series AT90CAN32 64 Pin 16MHz 5V 64-TQFP

Case Package:SOT-23

Datasheet:AT90CAN32-15AT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	64-TQFP
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-TQFP (14x14)
Number of Terminals	64
Interfaces	JTAG/SPI/TWI/USART
Data Converters	A/D 8x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	AT90CAN32
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	53
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, AVR® 90CAN
Published	2005
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Additional Feature	ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8MHZ
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	AT90CAN32
JESD-30 Code	S-PQFP-G64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3/5V
Temperature Grade	INDUSTRIAL
Interface	CAN, I2C, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	53
Speed	16MHz
RAM Size	2K x 8
Voltage - Supply (Vcc/Vdd)	2.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	CANbus, I2C, SPI, UART/USART
Supply Current-Max	30 mA
Bit Size	8
Data Converter	A/D 8x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	4
Address Bus Width	16
ROM (words)	32768
EEPROM Size	1K x 8
CPU Family	AVR RISC
External Data Bus Width	8
RAM (bytes)	1024
ROM Programmability	FLASH
Device Core	AVR
Height Seated (Max)	1.2mm
Width	14 mm
Length	14 mm
RoHS Status	ROHS3 Compliant

AT90CAN32-15AT Product Details

AT90CAN32-15AT Overview

64-TQFP-packages are available. There are 53 I/O ports on this device. Device mounting type Surface Mount is the type of mounting that the Microcontroller uses. There is a 8-Bit core at the core of this MCU. There is a type of program memory called FLASH in the Microcontroller. There is a temperature range of -40°C~85°C TA for this Microcontroller. An electrical component of this type belongs to the Automotive, AEC-Q100, AVR® 90CAN series. This program memory has a size of 32KB 32K x 8, which indicates what the size of the program memory is. AVR Core processors are used in MCU. Devices of this type belong to the MICROCONTROLLER, RISC power supply/socket/peripheral ICs category. This chip has a total of 64 terminations on MCU chip. You get a 8-bit size. This Microcontroller chip is powered by 5V volts. There are NO DMA channels on this Microcontroller chip. The part has a memory size of 32kB. The base part number AT90CAN32 provides alternatives. This device is extremely efficient when operated at a frequency of 16MHz. Using the PWM channel YES, the device works with the motor. In this chip, 64 pins can be accessed. Using the timer/counter system, it has 4 timers/counters. In addition to this, the device is embedded with the the AVR RISC CPU family. Some of these features include ALSO OPERATES AT 2.7V MINIMUM SUPPLY AT 8MHZ, for example, as one example.
