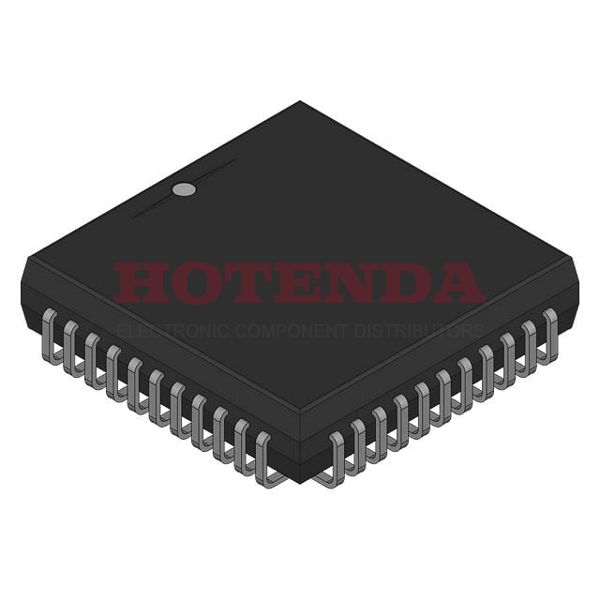

Name: AT89S52-33JU
Brand: Microchip Technology
SKU: AT89S52-33JU
Availability: InStock

new-10%

AT89S52-33JU

Manufacturer part number:AT89S52-33JU

Manufacturer:Microchip Technology

Description:Microcontroller 5V PLCC

Case Package:SOT-23

Datasheet:AT89S52-33JU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Package / Case	PLCC
Surface Mount	YES
Number of Terminations	44
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Terminal Position	QUAD
Terminal Form	J BEND
Supply Voltage	5V
Terminal Pitch	1.27mm
JESD-30 Code	S-PQCC-J44
Qualification Status	Not Qualified
Power Supplies	5V
Temperature Grade	INDUSTRIAL
Interface	UART
Max Supply Voltage	5.5V
Min Supply Voltage	4.5V
Memory Size	8kB
Number of I/O	32
RAM Size	256B
Memory Type	FLASH
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Supply Current-Max	25mA
Bit Size	8
Frequency (Max)	33MHz
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Number of Timers/Counters	3
Address Bus Width	16
ROM (words)	8192
Core Architecture	8051
Number of Programmable I/O	32
RAM (bytes)	256
Length	16.586mm
Height Seated (Max)	4.572mm
RoHS Status	Non-RoHS Compliant

AT89S52-33JU Product Details

AT89S52-33JU Overview

Packaged in a PLCC format, this MCU is available in a compact size. There are 32 I/Os on the Microcontroller. This is a MICROCONTROLLER uPs/uCs/Peripheral IC. During the manufacturing process, 44 terminations were applied to the IC chip. 8-bits are used in Microcontroller. The MCU chip's supply output is 5V volts. Currently, MCU chip has NO DMA channels. 8kB memory size belongs to the Chip part. There are NO PWM channels on the device. The clock has 3 timers/counters to keep track of the time. There is a FLASH memory feature on this equipment. With 8051 core architecture, it offers high performance. A total of 32 programmable I/Os are available on this board.
