Name: AT89LP51IC2-20AU
Brand: Microchip Technology
SKU: AT89LP51IC2-20AU
Availability: InStock

new-10%

AT89LP51IC2-20AU

Manufacturer part number:AT89LP51IC2-20AU

Manufacturer:Microchip Technology

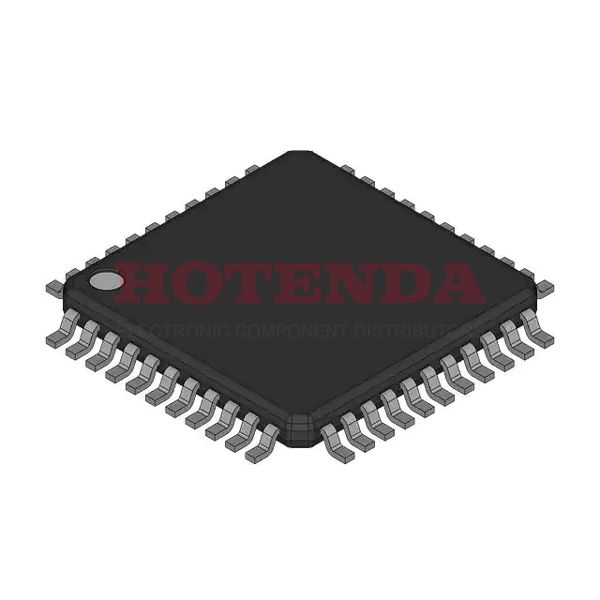

Description:32KB 32K x 8 FLASH 8051 8-Bit Microcontroller 89LP Series AT89LP51IC2 44 Pin 20MHz 5V 44-TQFP

Case Package:SOT-23

Datasheet:AT89LP51IC2-20AU Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	44-TQFP
Surface Mount	YES
Number of Pins	44
Supplier Device Package	44-TQFP (10x10)
Number of Terminals	44
Data Converters	A/D 7x10b
Number of I/Os	40
RoHS	Compliant
Package	Tray
Base Product Number	AT89LP51
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	40
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	89LP
Published	1997
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	44
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	20MHz
Base Part Number	AT89LP51IC2
JESD-30 Code	S-PQFP-G44
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2.5/5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	2.4V
Interface	EBI/EMI, I2C, SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	2.4 V
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	40
Speed	20MHz
RAM Size	1.375K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2.4V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 32K x 8
Connectivity	EBI/EMI, I2C, SPI, UART/USART
Supply Current-Max	7 mA
Bit Size	8
Data Converter	A/D 7x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.2 mm
Number of Timers/Counters	3
Address Bus Width	16
ROM (words)	32768
Core Architecture	8051
EEPROM Size	--
CPU Family	8051
Max Frequency	20 MHz
External Data Bus Width	8
Number of Programmable I/O	40
RAM (bytes)	1408
ROM Programmability	FLASH
Length	10mm
Height Seated (Max)	1.2mm
Width	10 mm
RoHS Status	ROHS3 Compliant

AT89LP51IC2-20AU Product Details

AT89LP51IC2-20AU Overview

A 44-TQFP package is included. In total, it has 40 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 8-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. 89LP series components belong to this electrical component. Its program memory size is 32KB 32K x 8. There is a 8051 Core Processor inside MCU that provides this device with its power. MICROCONTROLLER uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 44 terminations in total. The part works on a 8-bit basis. An output voltage of 5V volts is available for this Microcontroller chip. The Microcontroller chip has NO DMA channels. 32kB memory size belongs to the part. AT89LP51IC2 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 20MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel YES. On the chip, there are 44 pins that are accessible. A total of 3 timers/counters are included in the package. Devices based on the 8051 series of CPUs are embedded in the device. There's built-in FLASH memory in the equipment. It is built on a 8051 core architecture. This 8 Programmable I/O section allows you to program the device in many different ways depending on what you need.
