Name: AT89C52-24PC
Brand: Microchip Technology
SKU: AT89C52-24PC
Availability: InStock

new-10%

AT89C52-24PC

Manufacturer part number:AT89C52-24PC

Manufacturer:Microchip Technology

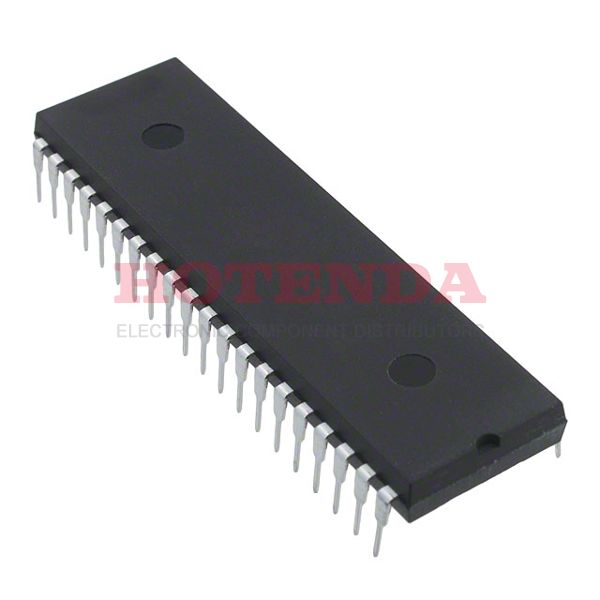

Description:8KB 8K x 8 FLASH 8051 8-Bit Microcontroller 89C Series AT89C52 40 Pin 24MHz 40-DIP (0.600, 15.24mm)

Case Package:SOT-23

Datasheet:AT89C52-24PC Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	40-DIP (0.600, 15.24mm)
Surface Mount	NO
Number of Pins	40
Supplier Device Package	40-PDIP
Number of Terminals	40
Data Converters	--
Package	Tube
Base Product Number	AT89C52
Mfr	Microchip Technology
Product Status	Obsolete
RoHS	Compliant
Package Shape	RECTANGULAR
Manufacturer	Atmel Corporation
Number of I/O Lines	32
Operating Temperature	0°C~70°C TA
Packaging	Tube
Series	89C
Published	1997
JESD-609 Code	e0
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Terminal Finish	Tin/Lead (Sn/Pb)
Max Operating Temperature	70°C
Min Operating Temperature	0°C
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	DUAL
Terminal Form	THROUGH-HOLE
Peak Reflow Temperature (Cel)	NOT APPLICABLE
Terminal Pitch	2.54 mm
Reach Compliance Code	compliant
Frequency	24MHz
Base Part Number	AT89C52
Pin Count	40
JESD-30 Code	R-PDIP-T40
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Power Supplies	5 V
Temperature Grade	COMMERCIAL
Interface	UART
Max Supply Voltage	6V
Min Supply Voltage	4V
Memory Size	8kB
Oscillator Type	Internal
Number of I/O	32
Speed	24MHz
RAM Size	256 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	4V~6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	8051
Peripherals	--
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	8KB 8K x 8
Connectivity	SIO, UART/USART
Bit Size	8
Access Time	24 μs
Has ADC	NO
DMA Channels	NO
Data Bus Width	8b
PWM Channels	NO
DAC Channels	NO
Seated Height-Max	5.59 mm
Number of Timers/Counters	3
Address Bus Width	16
ROM (words)	8192
Core Architecture	8051
EEPROM Size	--
CPU Family	8051
Max Frequency	24MHz
External Data Bus Width	8
Number of Programmable I/O	32
RAM (bytes)	256
ROM Programmability	FLASH
Height	3.94mm
Length	52.6mm
Width	14.4mm
RoHS Status	Non-RoHS Compliant
Lead Free	Contains Lead

AT89C52-24PC Product Details

AT89C52-24PC Overview

There is a 40-DIP (0.600, 15.24mm) package available. The board has 32 I/Os. Using the Mounting Type Through Hole, the MCU is mounted on PCB. A 8-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. 0°C~70°C TA is the temperature range at which this Microcontroller operates. 89C-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 8KB 8K x 8. Powered by a 8051 Core processor. Microcontroller's a MICROCONTROLLER uPs/uCs/Peripheral IC. As a result, this Microcontroller comes with a 8-bit size. A total of NO DMA channels are available. This IC part has a memory size of 8kB. There are a number of alternatives to the base part number AT89C52 that you can find. Performing well when operated at frequency 24MHz can be achieved. Using NO PWM channels, the device works. On the chip, there are 40 pins that can be accessed. It comes with 3 timers/counters that can be set up. The pins counted are 40. The device is powered by the the 8051 CPU family that is embedded in it. FLASH memory is one of the features of this equipment. The CPU is based on 8051 cores. There are 32 Programmable I/Os on this computer.
