Name: AT89C51AC3-S3SUM
Brand: Microchip Technology
SKU: AT89C51AC3-S3SUM
Price: 13.39000 USD
Availability: InStock

new

AT89C51AC3-S3SUM

Manufacturer part number:AT89C51AC3-S3SUM

Manufacturer:Microchip Technology

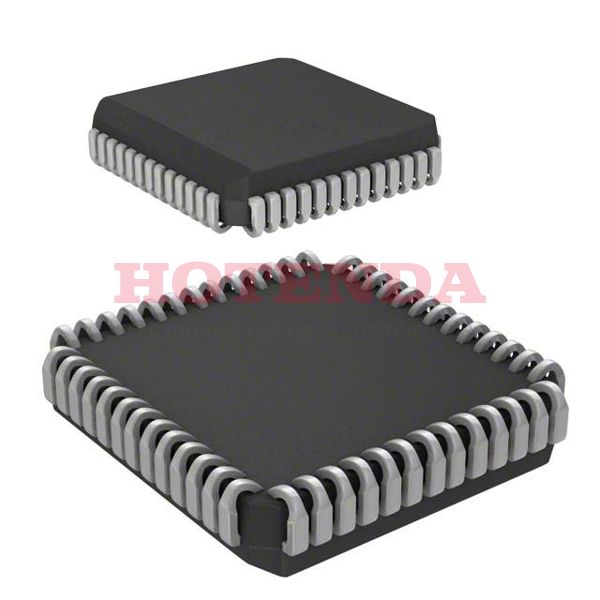

Description:64KB 64K x 8 FLASH 80C51 8-Bit Microcontroller 89C Series AT89C51AC3 52 Pin 60MHz 5V 52-LCC (J-Lead)

Case Package:SOT-23

Datasheet:AT89C51AC3-S3SUM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	52-LCC (J-Lead)
Surface Mount	YES
Number of Pins	52
Supplier Device Package	52-PLCC (19.15x19.15)
Number of Terminals	52
Mounting Style	SMD/SMT
Interfaces	SPI/UART
Data Converters	A/D 8x10b
Package	Tube
Base Product Number	AT89C51
Mfr	Microchip Technology
Product Status	Active
Schedule B	8542310000
Number of I/Os	36
RoHS	Compliant
Family Name	AT89C51
Instruction Set Architecture	80C51
Dimensions	19.25 x 19.25 x 4.06mm
Typical Operating Supply Voltage	5.5 (Maximum) V
Package Type	PLCC
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
MSL	MSL 3 - 168 hours
Qualification	-
DAC Resolution	-
Interface Type	SPI, UART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Package Shape	SQUARE
Number of I/O Lines	37
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	89C
Published	2002
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	52
ECCN Code	3A991.A.2
Terminal Finish	Matte Tin (Sn)
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Additional Feature	ALSO OPERATES AT 2.7V SUPPLY AT 40 MHZ
HTS Code	8542.31.00.01
Max Power Dissipation	1W
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	245
Supply Voltage	5V
Terminal Pitch	1.27mm
Reach Compliance Code	compliant
Frequency	60MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	AT89C51AC3
Pin Count	52
JESD-30 Code	S-PQCC-J52
Qualification Status	Not Qualified
Operating Supply Voltage	5V
Power Supplies	3/5 V
Temperature Grade	INDUSTRIAL
Interface	SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	2.7 V
Memory Size	64kB
Oscillator Type	External
Number of I/O	36
Speed	60MHz
RAM Size	2.25K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	80C51
Peripherals	POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	64KB 64K x 8
Connectivity	SPI, UART/USART
Bit Size	8
Data Converter	A/D 8x10b
Access Time	60 μs
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	4.57 mm
Number of Timers/Counters	3
Address Bus Width	16
Product Type	8-bit Microcontrollers - MCU
ROM (words)	65536
Core Architecture	8051
EEPROM Size	2K x 8
On Chip Program ROM Width	8
CPU Family	8051
Max Frequency	60 MHz
Number of A/D Converters	1
External Data Bus Width	8
Number of Programmable I/O	36
Number of UART Channels	1
RAM (bytes)	256
Number of ADC Channels	8
ROM Programmability	FLASH
Number of PWM Channels	5
Ambient Temperature Range High	85 °C
Number of SPI Channels	1
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Clock Speed	60
Flash Memory	64
Adc Channels	8
Adc Resolution	10
Device Core	80C51
Length	19.15mm
Height Seated (Max)	4.57mm
Height	4.57 mm
Width	19.25mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

AT89C51AC3-S3SUM Product Details

AT89C51AC3-S3SUM Overview

The package is 52-LCC (J-Lead)-shaped. There are 36 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 8-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~85°C TA are operated by this Microcontroller. It is part of the 89C series of electrical components. Having a size of 64KB 64K x 8, Microcontroller has a program memory of X bytes. A 80C51 Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER uPs/uCs/Peripheral ICs category. IC Chip 52 has 52 terminations. 8-bits are used for its size. IC Chip has 5V volt supply outputs. With NO DMA channels, Microcontroller chip can handle large data transfers. 64kB is the size of the memory in the IC part. Using the base part number AT89C51AC3, you will be able to find alternatives for the part. Using a 60MHz frequency, this electronic part can perform efficiently. Devices work in YES PWM channels. On the chip, 52 pins are accessible. In total, there are 3 timers/counters on the device. The pin count is 52. There is an embedded the 8051 CPU family inside the device, which makes it a powerful device. There is FLASH memory on this piece of equipment. In addition, it comes with a 8051 core architecture. It has 36 Programmable Input/Output pins that can be programmed. In addition to the above, there are other features such as ALSO OPERATES AT 2.7V SUPPLY AT 40 MHZ, to name but a few. A total of 8 UART channels are available on it. The ADC channel count on this device totals up to 8 channels. A total of 1 A/D converters are included in this device. In order for the device to function, it uses 5 PWM channels.
