Name: AT87251G2D-SLSUM
Brand: Microchip Technology
SKU: AT87251G2D-SLSUM
Availability: InStock

new-10%

AT87251G2D-SLSUM

Manufacturer part number:AT87251G2D-SLSUM

Manufacturer:Microchip Technology

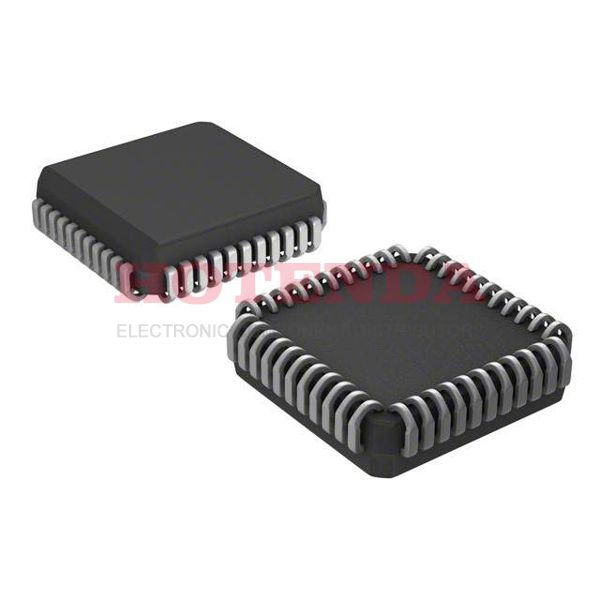

Description:32KB 32K x 8 OTP C251 8/16-Bit Microcontroller 8x251 Series AT87251G2D 44-LCC (J-Lead)

Case Package:SOT-23

Datasheet:AT87251G2D-SLSUM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	44-LCC (J-Lead)
Surface Mount	YES
Supplier Device Package	44-PLCC (16.59x16.59)
Number of Terminals	44
Data Converters	--
Package	Tube
Base Product Number	AT87251G2D
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Atmel Corporation
Number of I/O Lines	32
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	8x251
Published	2006
JESD-609 Code	e3
Pbfree Code	Yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	2 (1 Year)
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Subcategory	Microcontrollers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	J BEND
Peak Reflow Temperature (Cel)	245
Terminal Pitch	1.27 mm
Reach Compliance Code	unknown
Base Part Number	AT87251G2D
Pin Count	44
JESD-30 Code	S-PQCC-J44
Qualification Status	Not Qualified
Power Supplies	5 V
Temperature Grade	INDUSTRIAL
Oscillator Type	Internal
Number of I/O	32
Speed	24MHz
RAM Size	1K x 8
Voltage - Supply (Vcc/Vdd)	4.5V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	C251
Peripherals	POR, PWM, WDT
Program Memory Type	OTP
Core Size	8/16-Bit
Program Memory Size	32KB 32K x 8
Connectivity	EBI/EMI, I2C, Microwire, SPI, UART/USART
Supply Current-Max	40 mA
Bit Size	16
Has ADC	NO
DMA Channels	NO
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	4.57 mm
Address Bus Width	16
ROM (words)	32768
EEPROM Size	--
CPU Family	80251
External Data Bus Width	8
RAM (bytes)	1024
ROM Programmability	OTPROM
Width	16.55 mm
Length	16.55 mm
RoHS Status	ROHS3 Compliant

AT87251G2D-SLSUM Product Details

AT87251G2D-SLSUM Overview

This Microcontroller comes in a 44-LCC (J-Lead) package. This Microcontroller has 32 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8/16-Bit core. This Microcontroller's program memory type is OTP. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in 8x251 Series. The size of the program memory of Microcontroller is 32KB 32K x 8. MCU is powered by C251 Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. Microcontroller comes with 16 bit size. MCU chip has NO DMA channels. You can find alternatives through the base part number AT87251G2D. The device works in YES PWM channels. It counts 44 pins. The device is embedded with 80251 CPU family.
