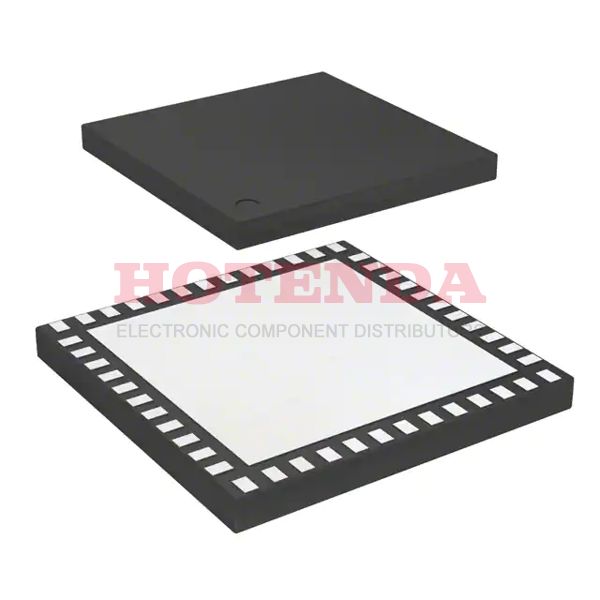

Name: AT32UC3L064-D3HT
Brand: Microchip Technology
SKU: AT32UC3L064-D3HT
Availability: InStock

new-10%

AT32UC3L064-D3HT

Manufacturer part number:AT32UC3L064-D3HT

Manufacturer:Microchip Technology

Description:64KB 64K x 8 FLASH AVR 32-Bit Microcontroller AVR®32 UC3 L Series AT32UC3L064 48 Pin 50MHz 1.8V 48-UFLGA Exposed Pad

Case Package:SOT-23

Datasheet:AT32UC3L064-D3HT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Contact Plating	Gold
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-UFLGA Exposed Pad
Surface Mount	YES
Number of Pins	48
Supplier Device Package	48-TLLGA (5.5x5.5)
Number of Terminals	48
Data Converters	A/D 9x12b
Package	Tray
Base Product Number	AT32UC3
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	36
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	AVR®32 UC3 L
Published	2008
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	48
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	BOTTOM
Terminal Form	BUTT
Supply Voltage	1.8V
Terminal Pitch	0.4mm
Reach Compliance Code	compliant
Frequency	50MHz
Base Part Number	AT32UC3L064
JESD-30 Code	S-PBGA-B48
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	1.98V
Power Supplies	1.8,1.8/3.3 V
Temperature Grade	INDUSTRIAL
Interface	I2C, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	36
Speed	50MHz
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	32
Data Converter	A/D 9x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	0.6 mm
Number of Timers/Counters	7
ROM (words)	65536
EEPROM Size	--
CPU Family	AVR RISC
Number of Programmable I/O	36
RAM (bytes)	16384
ROM Programmability	FLASH
Length	5.5mm
Height Seated (Max)	0.6mm
Width	5.5 mm
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

AT32UC3L064-D3HT Product Details

AT32UC3L064-D3HT Overview

This Microcontroller comes in a 48-UFLGA Exposed Pad package. This Microcontroller has 36 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in AVR®32 UC3 L Series. The size of the program memory of Microcontroller is 64KB 64K x 8. MCU is powered by AVR Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 48 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.8V supply voltage. MCU chip has YES DMA channels. The part owns 64kB memory size. You can find alternatives through the base part number AT32UC3L064. MCU's frequency is 50MHz. The device works in YES PWM channels. The pin number of the component remains 48. It has 7 timers/counters. The device is embedded with AVR RISC CPU family. It programs in 36 Programmable I/O.
