Name: AT32UC3L016-ZAUR
Brand: Microchip Technology
SKU: AT32UC3L016-ZAUR
Availability: InStock

new-10%

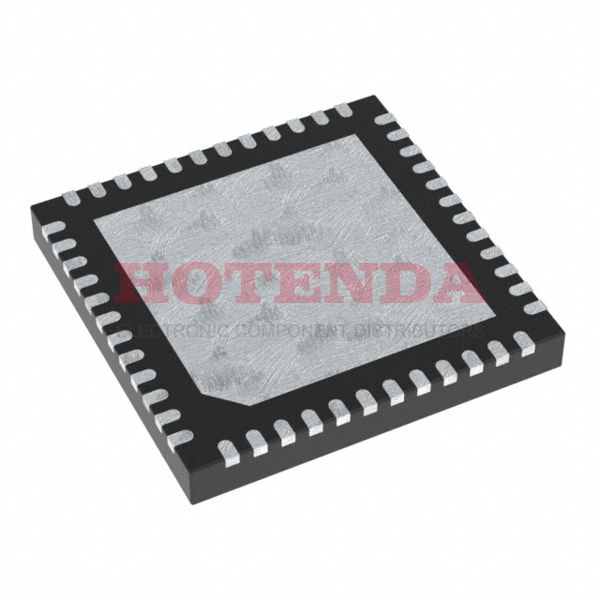

AT32UC3L016-ZAUR

Manufacturer part number:AT32UC3L016-ZAUR

Manufacturer:Microchip Technology

Description:16KB 16K x 8 FLASH AVR 32-Bit Microcontroller AVR®32 UC3 L Series AT32UC3L016 48 Pin 50MHz 1.8V 48-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:AT32UC3L016-ZAUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Surface Mount	YES
Number of Pins	48
Supplier Device Package	48-QFN (7x7)
Number of Terminals	48
Data Converters	A/D 9x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	AT32UC3
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	36
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	AVR®32 UC3 L
Published	2011
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	48
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	1.8V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	50MHz
Base Part Number	AT32UC3L016
JESD-30 Code	S-XQCC-N48
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	1.98V
Power Supplies	1.8,1.8/3.3 V
Temperature Grade	INDUSTRIAL
Interface	I2C, SPI, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	36
Speed	50MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	16KB 16K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	32
Data Converter	A/D 9x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	0.9 mm
Number of Timers/Counters	7
ROM (words)	16384
EEPROM Size	--
CPU Family	AVR RISC
RAM (bytes)	8192
ROM Programmability	FLASH
Height Seated (Max)	0.9mm
Width	7 mm
Length	7 mm
RoHS Status	ROHS3 Compliant

AT32UC3L016-ZAUR Product Details

AT32UC3L016-ZAUR Overview

There is a 48-VFQFN Exposed Pad package available. The board has 36 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. AVR®32 UC3 L-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 16KB 16K x 8. Powered by a AVR Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 48. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 1.8V volts. A total of YES DMA channels are available. This IC part has a memory size of 16kB. There are a number of alternatives to the base part number AT32UC3L016 that you can find. Performing well when operated at frequency 50MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 48 pins that can be accessed. It comes with 7 timers/counters that can be set up. The device is powered by the the AVR RISC CPU family that is embedded in it.
