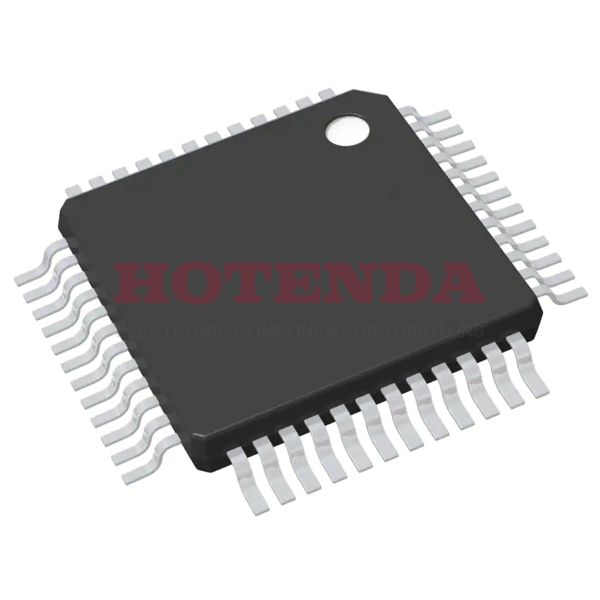

Name: AT32UC3L016-AUT
Brand: Microchip Technology
SKU: AT32UC3L016-AUT
Availability: InStock

new-10%

AT32UC3L016-AUT

Manufacturer part number:AT32UC3L016-AUT

Manufacturer:Microchip Technology

Description:16KB 16K x 8 FLASH AVR 32-Bit Microcontroller AVR®32 UC3 L Series AT32UC3L016 48 Pin 50MHz 1.8V 48-TQFP

Case Package:SOT-23

Datasheet:AT32UC3L016-AUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	19 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	48-TQFP
Surface Mount	YES
Number of Pins	48
Supplier Device Package	48-TQFP (7x7)
Number of Terminals	48
Data Converters	A/D 9x12b
Package	Tray
Base Product Number	AT32UC3
Mfr	Microchip Technology
Product Status	Obsolete
Package Shape	SQUARE
Manufacturer	Atmel Corporation
Number of I/O Lines	36
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	AVR®32 UC3 L
Published	2011
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	48
ECCN Code	3A991.A.2
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	1.8V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	50MHz
Base Part Number	AT32UC3L016
Pin Count	48
JESD-30 Code	S-PQFP-G48
Qualification Status	Not Qualified
Operating Supply Voltage	3.3V
Power Supplies	1.8,1.8/3.3 V
Temperature Grade	INDUSTRIAL
Interface	2-Wire, I2C, SPI, Serial, UART, USART
Memory Size	16kB
Oscillator Type	Internal
Number of I/O	36
Speed	50MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Number of Bits	32
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	16KB 16K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	32
Data Converter	A/D 9x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	1.2 mm
Number of Timers/Counters	7
ROM (words)	4096
Core Architecture	AVR
EEPROM Size	--
On Chip Program ROM Width	32
CPU Family	AVR RISC
Number of Programmable I/O	36
RAM (bytes)	8192
Number of ADC Channels	8
ROM Programmability	FLASH
Number of I2C Channels	2
Number of SPI Channels	1
Can	0
Clock Speed	50
Flash Memory	16
Adc Channels	8
Adc Resolution	12
Device Core	AVR
Height	1.05mm
Length	7mm
Width	7mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

AT32UC3L016-AUT Product Details

AT32UC3L016-AUT Overview

A 48-TQFP package is included. In total, it has 36 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 32-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. AVR®32 UC3 L series components belong to this electrical component. Its program memory size is 16KB 16K x 8. There is a AVR Core Processor inside MCU that provides this device with its power. MICROCONTROLLER, RISC uPs, uCs, and peripheral ICs make up the Microcontroller. Microcontroller is known that the chip has 48 terminations in total. The part works on a 32-bit basis. An output voltage of 1.8V volts is available for this Microcontroller chip. The Microcontroller chip has YES DMA channels. 16kB memory size belongs to the part. AT32UC3L016 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 50MHz, as long as it is operated at a low power consumption. In order for the device to work with the motor, it utilizes the PWM channel YES. On the chip, there are 48 pins that are accessible. A total of 7 timers/counters are included in the package. A total of 48 pins are present. Devices based on the AVR RISC series of CPUs are embedded in the device. It is built on a AVR core architecture. This 8 Programmable I/O section allows you to program the device in many different ways depending on what you need. In total, there are 8 channels for the ADC on this board. 32 bits are found on a chip. Devices like this use an 2-channel PWM controller.
