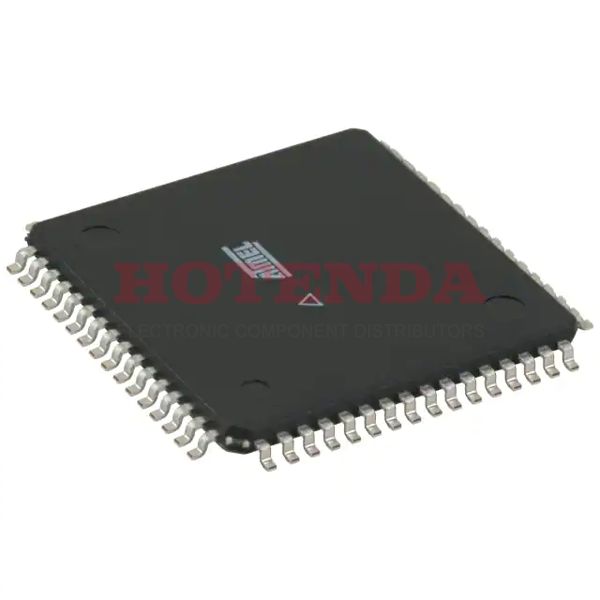

Name: AT32UC3C2128C-A2ZR
Brand: Microchip Technology
SKU: AT32UC3C2128C-A2ZR
Availability: InStock

new-10%

AT32UC3C2128C-A2ZR

Manufacturer part number:AT32UC3C2128C-A2ZR

Manufacturer:Microchip Technology

Description:128KB 128K x 8 FLASH AVR 32-Bit Microcontroller Automotive, AEC-Q100, AVR®32 UC3 C Series AT32UC3C2128C 64 Pin 66MHz 5V 64-TQFP Exposed Pad

Case Package:SOT-23

Datasheet:AT32UC3C2128C-A2ZR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	64-TQFP Exposed Pad
Surface Mount	YES
Number of Pins	64
Supplier Device Package	64-TQFP (10x10)
Number of Terminals	64
Interfaces	CAN/Ethernet/I2C/I2S
Data Converters	A/D 11x12b, D/A 2x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	AT32UC3
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	45
Operating Temperature	-40°C~125°C TA
Packaging	Cut Tape (CT)
Series	Automotive, AEC-Q100, AVR®32 UC3 C
Published	2001
Pbfree Code	yes
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Terminal Position	QUAD
Terminal Form	GULL WING
Supply Voltage	5V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	66MHz
Base Part Number	AT32UC3C2128C
JESD-30 Code	S-PQFP-G64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	3.3/5V
Temperature Grade	AUTOMOTIVE
Interface	CAN, Ethernet, I2C, IrDA, LIN, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	45
Speed	50 MHz
RAM Size	32K x 8
Voltage - Supply (Vcc/Vdd)	3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	CANbus, Ethernet, I2C, IrDA, LINbus, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 11x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.2 mm
Number of Timers/Counters	4
Address Bus Width	24
ROM (words)	131072
EEPROM Size	--
CPU Family	AVR RISC
Screening Level	AEC-Q100
External Data Bus Width	16
RAM (bytes)	32768
ROM Programmability	FLASH
Device Core	AVR
Length	10mm
Height Seated (Max)	1.2mm
Width	10 mm
RoHS Status	ROHS3 Compliant

AT32UC3C2128C-A2ZR Product Details

AT32UC3C2128C-A2ZR Overview

The package has a 64-TQFP Exposed Pad shape. With 45 I/Os, it's pretty good. The Microcontroller's mounting type is Surface Mount and this IC chip has the following features. As the name implies, this Microcontroller is based on the 32-Bit core. As far as its program memory type is concerned, it is FLASH. Temperatures within -40°C~125°C TA range are measured by this Microcontroller. The Automotive, AEC-Q100, AVR®32 UC3 C series is comprised of this electrical component. The electronic part has a program memory size of 128KB 128K x 8. There's a AVR Core Processor inside. The IC chip fits into the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. There are 64 terminations on the IC chip. 32-bits are the size of the data that comes with MCU. A 5V volt supply is provided by the Microcontroller chip. In addition to that, MCU chip has YES DMA channels. Its memory size is 128kB. It is possible to find alternatives to the base part number AT32UC3C2128C by using the part number search tool. An effective performance can be achieved at a frequency of 66MHz. There are a total of YES channels in the device. It is possible to access the 64 pins on the chip. In total, it has 4 timers and counters in it. There are several CPUs that are embedded in the device, including the the AVR RISC CPU.
