SK24-LTP

  • SK24-LTP - SK24-LTP datasheet pdf and Diodes - Rectifiers - Single product details from Micro Commercial Co stock available on our website
  • SK24-LTP - SK24-LTP datasheet pdf and Diodes - Rectifiers - Single product details from Micro Commercial Co stock available on our website

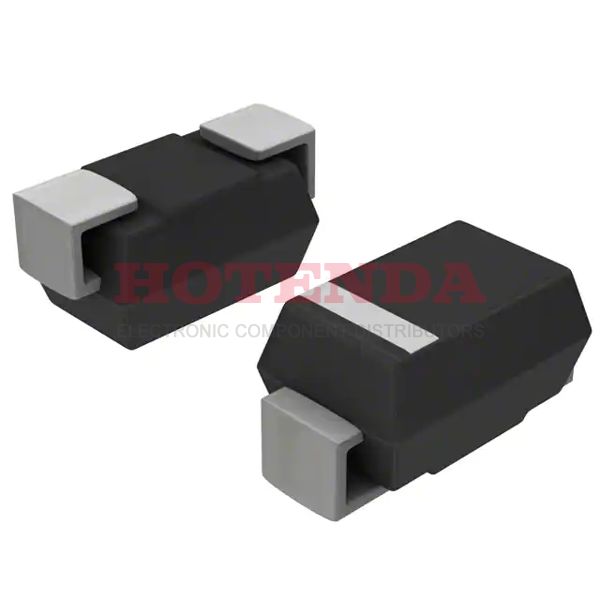

SK24-LTP

SK24-LTP

Micro Commercial Co

SK24-LTP datasheet pdf and Diodes - Rectifiers - Single product details from Micro Commercial Co stock available on our website

SOT-23

SK24-LTP Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mounting Type Surface Mount
Package / Case DO-214AA, SMB
Surface MountYES
Diode Element Material SILICON
PackagingTape & Reel (TR)
Published 2008
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Tin (Sn)
HTS Code8541.10.00.80
Subcategory Rectifier Diodes
Terminal Position DUAL
Terminal FormC BEND
Peak Reflow Temperature (Cel) 260
Reach Compliance Code not_compliant
[email protected] Reflow Temperature-Max (s) 10
Base Part Number SK24
Pin Count2
JESD-30 Code R-PDSO-C2
Qualification StatusNot Qualified
Operating Temperature (Max) 125°C
Number of Elements 1
Configuration SINGLE
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 2mA @ 40V
Voltage - Forward (Vf) (Max) @ If 500mV @ 2A
Operating Temperature - Junction -55°C~125°C
Output Current-Max 2A
Application GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 2A
Number of Phases 1
Rep Pk Reverse Voltage-Max 40V
Capacitance @ Vr, F 50pF @ 4V 1MHz
Non-rep Pk Forward Current-Max 50A
Reverse Current-Max 2000μA
RoHS StatusROHS3 Compliant
In-Stock:13917 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.076920$0.07692
500$0.056559$28.2795
1000$0.047132$47.132
2000$0.043241$86.482
5000$0.040412$202.06
10000$0.037592$375.92
15000$0.036356$545.34
50000$0.035749$1787.45

SK24-LTP Product Details

SK24-LTP Overview


In the case of a maximum reverse current, the value reaches 2000μA.As far as output current is concerned, 2A is the maximum.

SK24-LTP Features


A maximum reverse current of 2000μA
2A is the maximum value

SK24-LTP Applications


There are a lot of Micro Commercial Co SK24-LTP applications of single-phase diode rectifier.

  • DC motor control and drives
  • Reverse Polarity Protection
  • Freewheeling
  • Recirculating Diode
  • Polarity Protection Diode
  • Battery chargers
  • Power converters
  • Switching Diode
  • Ultra High-Speed Switching
  • Welders
