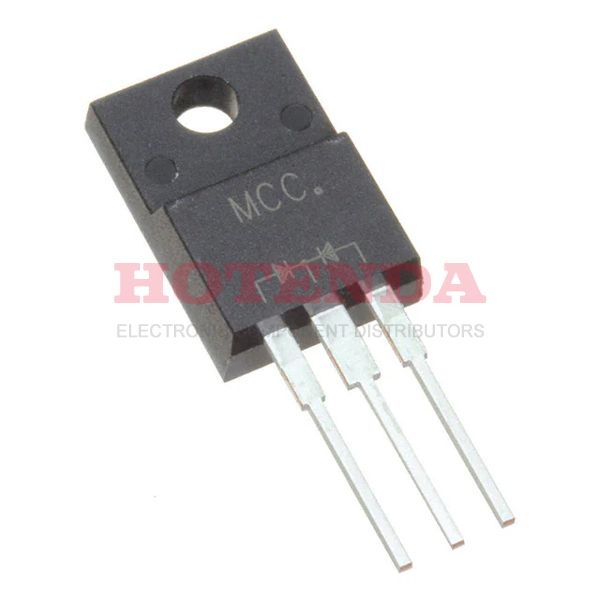

MBR30150FCT-BP

Name: MBR30150FCT-BP
Brand: Micro Commercial Co
SKU: MBR30150FCT-BP
Price: 1.74000 USD
Availability: InStock

new-10%

Manufacturer part number:MBR30150FCT-BP

Manufacturer:Micro Commercial Co

Description:MBR30150FCT-BP datasheet pdf and Diodes - Rectifiers - Arrays product details from Micro Commercial Co stock available on our website

Case Package:SOT-23

Datasheet:MBR30150FCT-BP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	TO-220-3 Isolated Tab
Surface Mount	NO
Diode Element Material	SILICON
Packaging	Tube
Published	2005
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	LOW POWER LOSS, FREE WHEELING DIODE
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	SINGLE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
JESD-30 Code	R-PSFM-T3
Qualification Status	Not Qualified
Operating Temperature (Max)	150°C
Number of Elements	2
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	5μA @ 150V
Voltage - Forward (Vf) (Max) @ If	990mV @ 30A
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	15A
Application	EFFICIENCY
Voltage - DC Reverse (Vr) (Max)	150V
Current - Average Rectified (Io)	15A
Number of Phases	1
Rep Pk Reverse Voltage-Max	150V
JEDEC-95 Code	TO-220AB
Non-rep Pk Forward Current-Max	260A
Diode Configuration	1 Pair Common Cathode
RoHS Status	ROHS3 Compliant
