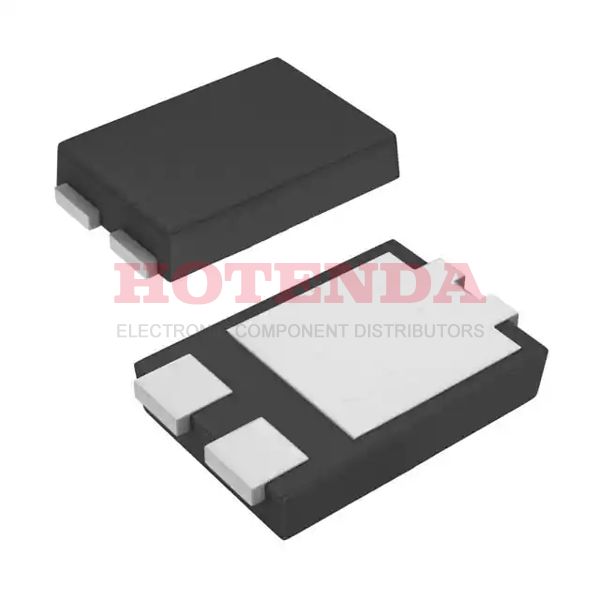

MBR1045ULPS-TP

Name: MBR1045ULPS-TP
Brand: Micro Commercial Co
SKU: MBR1045ULPS-TP
Price: 0.82000 USD
Availability: InStock

new-10%

Manufacturer part number:MBR1045ULPS-TP

Manufacturer:Micro Commercial Co

Description:MBR1045ULPS-TP datasheet pdf and Diodes - Rectifiers - Single product details from Micro Commercial Co stock available on our website

Case Package:SOT-23

Datasheet:MBR1045ULPS-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Surface Mount
Package / Case	TO-277, 3-PowerDFN
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Digi-Reel®
Published	2006
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
HTS Code	8541.10.00.80
Subcategory	Rectifier Diodes
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MBR1045
JESD-30 Code	R-PDSO-F3
Operating Temperature (Max)	150°C
Number of Elements	1
Configuration	SINGLE
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	250μA @ 45V
Voltage - Forward (Vf) (Max) @ If	470mV @ 10A
Case Connection	CATHODE
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	10A
Application	GENERAL PURPOSE
Voltage - DC Reverse (Vr) (Max)	45V
Current - Average Rectified (Io)	10A
Number of Phases	1
Rep Pk Reverse Voltage-Max	45V
JEDEC-95 Code	TO-277B
Non-rep Pk Forward Current-Max	275A
Reverse Current-Max	250μA
RoHS Status	ROHS3 Compliant
