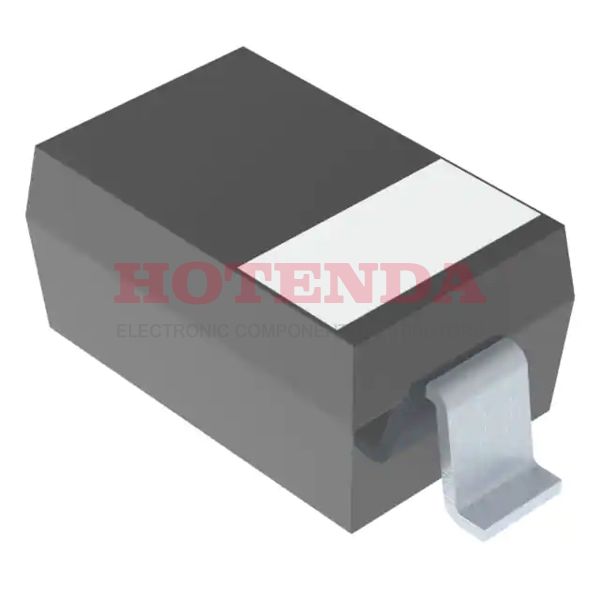

B5817W-TP

B5817W-TP

Micro Commercial Co

B5817W-TP datasheet pdf and Diodes - Rectifiers - Single product details from Micro Commercial Co stock available on our website

SOT-23

B5817W-TP Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 12 Weeks
Mounting Type Surface Mount
Package / Case SOD-123
Surface MountYES
Diode Element Material SILICON
PackagingTape & Reel (TR)
Published 2008
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1
Number of Terminations 2
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code8541.10.00.80
Terminal Position DUAL
Terminal FormGULL WING
Peak Reflow Temperature (Cel) 260
[email protected] Reflow Temperature-Max (s) 10
Pin Count2
JESD-30 Code R-PDSO-G2
Qualification StatusNot Qualified
Operating Temperature (Max) 125°C
Number of Elements 1
Configuration SINGLE
Power Dissipation-Max 0.25W
Speed Fast Recovery =< 500ns, > 200mA (Io)
Diode Type Schottky
Current - Reverse Leakage @ Vr 1mA @ 20V
Voltage - Forward (Vf) (Max) @ If 750mV @ 3A
Operating Temperature - Junction -65°C~125°C
Output Current-Max 1A
Voltage - DC Reverse (Vr) (Max) 20V
Current - Average Rectified (Io) 1A
Rep Pk Reverse Voltage-Max 20V
Capacitance @ Vr, F 120pF @ 4V 1MHz
RoHS StatusROHS3 Compliant
In-Stock:98390 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.392000$0.392
10$0.369811$3.69811
100$0.348879$34.8879
500$0.329131$164.5655
1000$0.310501$310.501

B5817W-TP Product Details

B5817W-TP Overview


Phase diode rectifier is possible to produce a maximum output current by setting the output current to 1A.

B5817W-TP Features


1A is the maximum value

B5817W-TP Applications


There are a lot of Micro Commercial Co B5817W-TP applications of single-phase diode rectifier.

  • DC motor control and drives
  • Ultra High-Speed Switching
  • Power converters
  • Battery chargers
  • Reverse Polarity Protection
  • Polarity Protection Diode
  • Switching Diode
  • Recirculating Diode
  • Welders
  • Freewheeling
