Name: 1N5360B-TP
Brand: Micro Commercial Co
SKU: 1N5360B-TP
Price: 0.43000 USD
Availability: InStock

new-10%

1N5360B-TP

Manufacturer part number:1N5360B-TP

Manufacturer:Micro Commercial Co

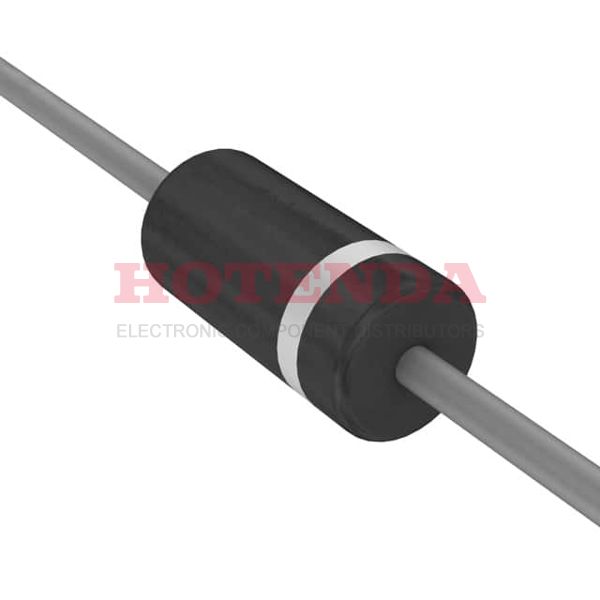

Description:ZENER DIODE 4Ohm ±5% 500nA @ 19V -55°C~150°C 2 Terminations DO-204AC, DO-15, Axial

Case Package:SOT-23

Datasheet:1N5360B-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	12 Weeks
Mounting Type	Through Hole
Package / Case	DO-204AC, DO-15, Axial
Surface Mount	NO
Diode Element Material	SILICON
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Published	2006
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8541.10.00.50
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	1N5360
Pin Count	2
JESD-30 Code	O-PALF-W2
Qualification Status	Not Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	5W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	500nA @ 19V
Voltage - Forward (Vf) (Max) @ If	1.2V @ 1A
Case Connection	ISOLATED
Power - Max	5W
Impedance-Max	4Ohm
Reference Voltage	25V
Voltage - Zener (Nom) (Vz)	25V
Voltage Tol-Max	5%
Working Test Current	50mA
Dynamic Impedance-Max	4Ohm
RoHS Status	ROHS3 Compliant

1N5360B-TP Product Details

1N5360B-TP Overview

It is necessary to supply this electrical device with a reverse leakage current of 500nA @ 19V.A voltage of 5% indicates the maximum voltage (Tol) that can be supplied.In operation, the maximum voltage - Zener (Nom) is set to 25V.This device can only be operated when the working test voltage is set to 50mA.For the device to operate, the maximum forward voltage (Vf) 1.2V @ 1A must be supplied.
