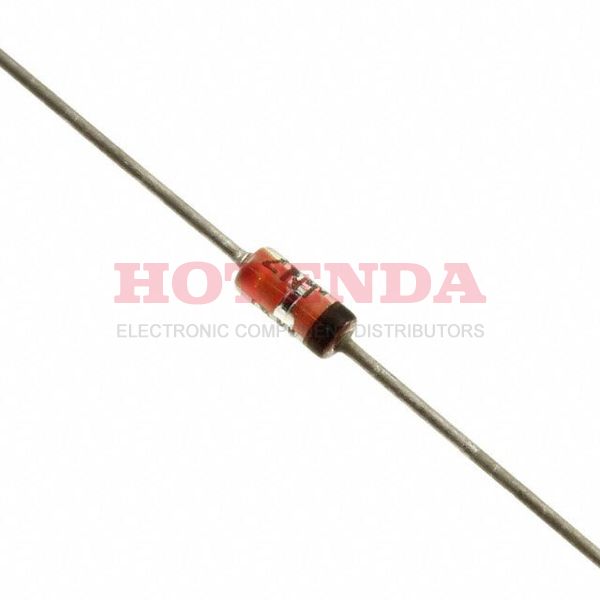

Name: 1N5251B-TP
Brand: Micro Commercial Co
SKU: 1N5251B-TP
Availability: InStock

new-10%

1N5251B-TP

Manufacturer part number:1N5251B-TP

Manufacturer:Micro Commercial Co

Description:ZENER DIODE 29Ohm ±5% 100nA @ 17V -55°C~150°C 2 Terminations DO-204AH, DO-35, Axial

Case Package:SOT-23

Datasheet:1N5251B-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Surface Mount	NO
Diode Element Material	SILICON
Operating Temperature	-55°C~150°C
Packaging	Tape & Reel (TR)
Published	2006
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Not For New Designs
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
HTS Code	8541.10.00.50
Terminal Form	WIRE
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	1N5251
Pin Count	2
JESD-30 Code	O-LALF-W2
Qualification Status	Not Qualified
Number of Elements	1
Polarity	UNIDIRECTIONAL
Configuration	SINGLE
Power Dissipation-Max	0.5W
Diode Type	ZENER DIODE
Current - Reverse Leakage @ Vr	100nA @ 17V
Voltage - Forward (Vf) (Max) @ If	1.1V @ 200mA
Case Connection	ISOLATED
Power - Max	500mW
Impedance-Max	29Ohm
Reference Voltage	22V
Voltage - Zener (Nom) (Vz)	22V
Voltage Tol-Max	5%
Working Test Current	5.6mA
RoHS Status	ROHS3 Compliant

1N5251B-TP Product Details

1N5251B-TP Overview

In order to supply this electrical device, a reverse leakage current of 100nA @ 17V is required.This value (Tol) represents the maximum voltage that can be supplied.Zener (Nom) voltage is reduced to 22V during operation.This device should be operated with 5.6mA as the working test voltage.1.1V @ 200mA is achieved when the maximum voltage - Forward (Vf) is applied for its operation.
