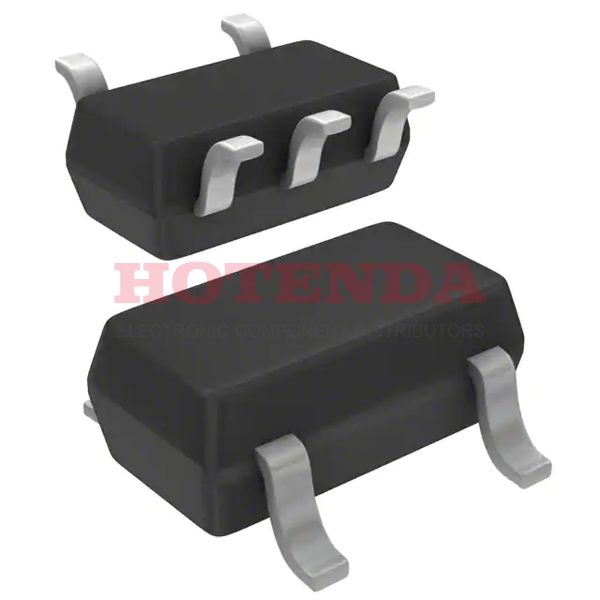

Name: SPX5205M5-L
Brand: MaxLinear, Inc.
SKU: SPX5205M5-L
Availability: InStock

new-10%

SPX5205M5-L

Manufacturer part number:SPX5205M5-L

Manufacturer:MaxLinear, Inc.

Description:Enable Adjustable 0.95mm PMIC SC-74A, SOT-753

Case Package:SOT-23

Datasheet:SPX5205M5-L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	SC-74A, SOT-753
Surface Mount	YES
Operating Temperature	-40°C~85°C
Packaging	Bulk
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.95mm
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	R-PDSO-G5
Current - Supply (Max)	2.5mA
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	150mA
Control Features	Enable
Voltage - Output (Min/Fixed)	1.235V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	5μA
Voltage Dropout (Max)	0.35V @ 150mA
Voltage - Output (Max)	15.65V
Length	2.9mm
RoHS Status	RoHS Compliant

SPX5205M5-L Product Details

SPX5205M5-L Overview

This Voltage Regulator IC comes inBulk packaging. This battery regulator is contained in a SC-74A, SOT-753 package. There are 5 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~85°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 150mA.
