Name: SPX2941T5-L
Brand: MaxLinear, Inc.
SKU: SPX2941T5-L
Availability: InStock

new-10%

SPX2941T5-L

Manufacturer part number:SPX2941T5-L

Manufacturer:MaxLinear, Inc.

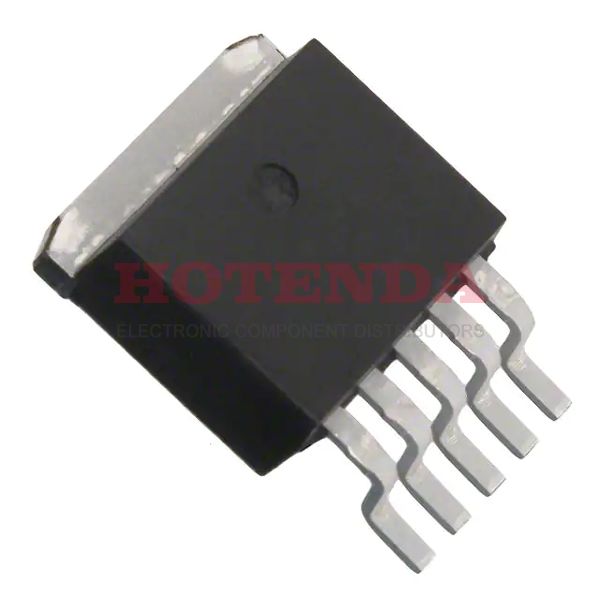

Description:Enable Adjustable PMIC TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:SPX2941T5-L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2006
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	R-PSSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	1A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.25V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity, Short Circuit, Transient Voltage
Voltage Dropout (Max)	0.55V @ 1A
Voltage - Output (Max)	15.45V
Height Seated (Max)	4.826mm
Width	9.042mm
RoHS Status	RoHS Compliant

SPX2941T5-L Product Details

SPX2941T5-L Overview

A Tube case is used to deliver this IC regulator. This voltage regulator IC comes in a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case. On the regulater IC chip, there are a total of 5 terminations. Output type Adjustable. This component features 1 Voltage regulators. As a result of the Linear Voltage Regulator's design, the operating temperature of Surface Mount can be adjusted within a specified range. There is a temperature range of -40°C~125°C degrees during operation of the IC regulator. There is a configuration in this voltage regulator IC that specifies that its output function is Positive. In terms of its current output, it is able to supply 1A.
