Name: SPX29302T5-L
Brand: MaxLinear, Inc.
SKU: SPX29302T5-L
Availability: InStock

new-10%

SPX29302T5-L

Manufacturer part number:SPX29302T5-L

Manufacturer:MaxLinear, Inc.

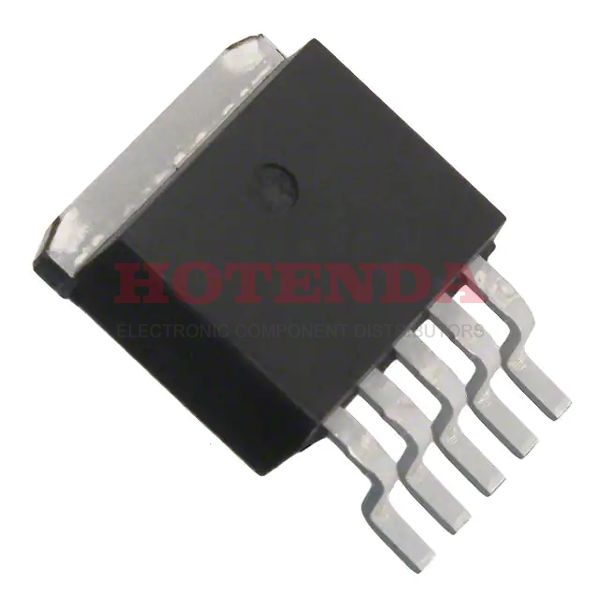

Description:Enable Adjustable PMIC TO-263-6, D2Pak (5 Leads + Tab), TO-263BA

Case Package:SOT-23

Datasheet:SPX29302T5-L Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	TO-263-6, D2Pak (5 Leads + Tab), TO-263BA
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	5
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	SINGLE
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	245
Number of Functions	1
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	R-PSSO-G5
Qualification Status	Not Qualified
Voltage - Input (Max)	16V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	3A
Control Features	Enable
Voltage - Output (Min/Fixed)	1.25V
Number of Regulators	1
Protection Features	Over Current, Reverse Polarity, Transient Voltage
Voltage Dropout (Max)	0.8V @ 3A
Height Seated (Max)	5.08mm
RoHS Status	RoHS Compliant

SPX29302T5-L Product Details

SPX29302T5-L Overview

In the case of Tube cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a TO-263-6, D2Pak (5 Leads + Tab), TO-263BA case. The PMIC chip has 5 terminations. Adjustable is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~125°C degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. Currently, 3A are being output by it at the moment.
