Name: SP6205ER-L-2-5/TR
Brand: MaxLinear, Inc.
SKU: SP6205ER-L-2-5/TR
Availability: InStock

new-10%

SP6205ER-L-2-5/TR

Manufacturer part number:SP6205ER-L-2-5/TR

Manufacturer:MaxLinear, Inc.

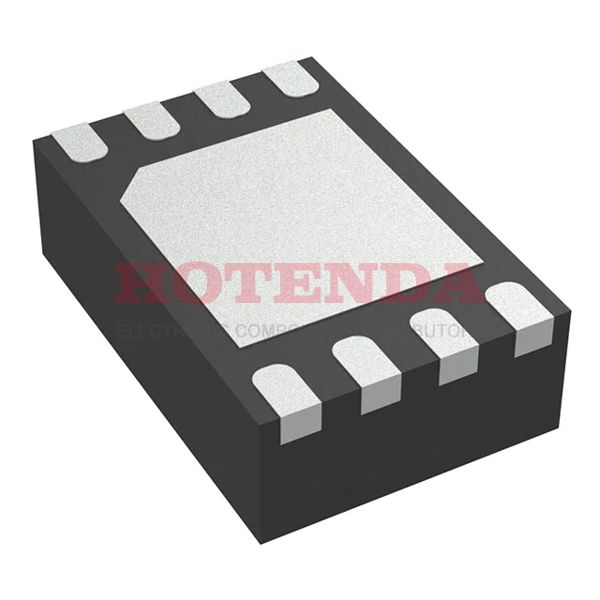

Description:Enable Fixed 0.5mm PMIC 8-VFDFN Exposed Pad

Case Package:SOT-23

Datasheet:SP6205ER-L-2-5/TR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-VFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tape & Reel (TR)
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	R-PDSO-N8
Current - Supply (Max)	490μA
Qualification Status	Not Qualified
Voltage - Input (Max)	5.5V
Output Type	Fixed
Output Configuration	Positive
Current - Output	500mA
Control Features	Enable
Output Voltage 1	2.5V
Input Voltage (Min)	2.7V
Voltage - Output (Min/Fixed)	2.5V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	100μA
PSRR	67dB (1kHz)
Output Voltage1-Max	2.55V
Output Voltage1-Min	2.45V
Dropout Voltage1-Max	0.5V
Length	3mm
Width	2mm
RoHS Status	RoHS Compliant

SP6205ER-L-2-5/TR Product Details

SP6205ER-L-2-5/TR Overview

This Voltage Regulator IC comes inTape & Reel (TR) packaging. Packaged in a 8-VFDFN Exposed Pad case, the battery regulator IC is protected from damage during shipment. There are 8 terminations on the gadget. The IC chip's output type is Fixed. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 500mA.
