Name: SP6201ER-L-1-8
Brand: MaxLinear, Inc.
SKU: SP6201ER-L-1-8
Availability: InStock

new-10%

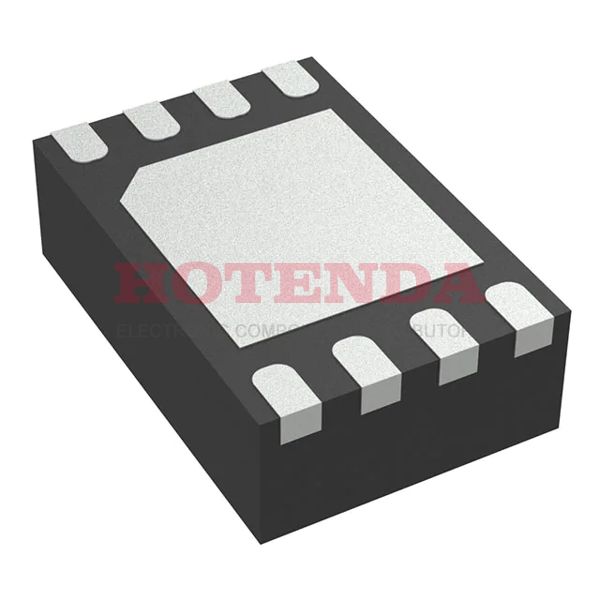

SP6201ER-L-1-8

Manufacturer part number:SP6201ER-L-1-8

Manufacturer:MaxLinear, Inc.

Description:Current Limit, Enable, Power Good, Reset Output Fixed 0.5mm PMIC 8-VFDFN Exposed Pad

Case Package:SOT-23

Datasheet:SP6201ER-L-1-8 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	8-VFDFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	8
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	R-PDSO-N8
Current - Supply (Max)	500μA
Qualification Status	Not Qualified
Voltage - Input (Max)	6V
Output Type	Fixed
Output Configuration	Positive
Current - Output	200mA
Control Features	Current Limit, Enable, Power Good, Reset Output
Output Voltage 1	1.8V
Input Voltage (Min)	2.5V
Voltage - Output (Min/Fixed)	1.8V
Number of Regulators	1
Protection Features	Over Current, Over Temperature
Current - Quiescent (Iq)	45μA
Voltage Dropout (Max)	0.5V @ 200mA
PSRR	78dB ~ 40dB (100Hz ~ 400Hz)
Length	3mm
Width	2mm
RoHS Status	RoHS Compliant

SP6201ER-L-1-8 Product Details

SP6201ER-L-1-8 Overview

Tube cases are used for delivery. The Liner regulator IC is packaged in 8-VFDFN Exposed Pad case. On the Linear IC itself, there are 8 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 1 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C TJ degrees. There is a Positive configured as the output function for this IC regulator. There is a current output of 200mA from this regulator IC.
