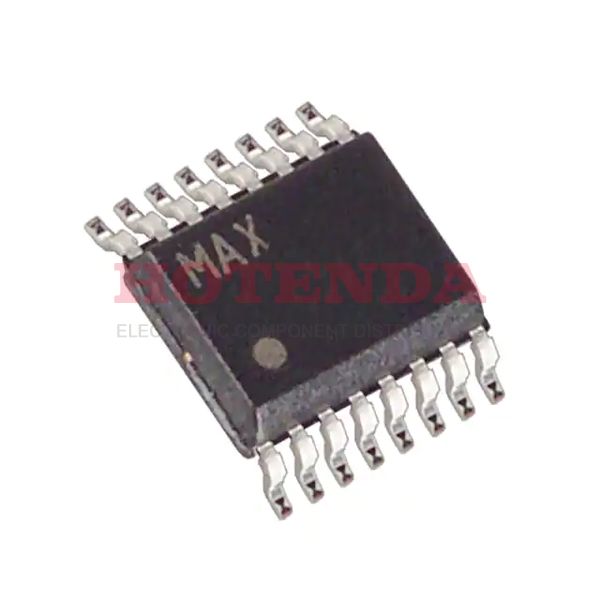

MAX978EEE+ Overview
Electronic comparator is packaged in 16-SSOP (0.154, 3.90mm Width) for convenient transportation.Output type CMOS, Rail-to-Rail, TTL is used for this comparator.We ship the part through Tube .There are16 terminals on the comparator.The electrical component in this case belongs to the Comparator family.With a 5V voltage supply, the comparator can perform multiple demanding tasks.It's a typical General Purpose comparator.This is a 4 element comparator.The pinout of the component starts from 16 pins it has.Electronic comparator is recommended that you mount the device using type Surface Mount .In order to avoid malfunctions, the operating temperature should be set to -40°C~85°C .The comparator is equipped with 16 pins.You can find more pin-to-pin solutions by searching MAX978 .There is a quiescent current of 650μA in this comparator.This component has a Surface Mount mount for mounting to PCBs or other boards.Normal operation of the device requires 120μA supply current.A supply current exceeding 120μA may result in the comparator malfunctioning.The device can be powered by 3/5V power supplies.Input current to the device cannot exceed 75nA .
MAX978EEE+ Features
CMOS, Rail-to-Rail, TTL output capability
General Purpose IC
Employing 4 elements
Operates under -40°C~85°C
Quiescent Current: 650μA
MAX978EEE+ Applications
There are a lot of Maxim Integrated MAX978EEE+ linear comparators applications.
- Handheld Instruments
- Set Top Boxes
- Wearable Devices
- Zero-Crossing Detectors
- Hand-Held Electronics
- Wide Range VCO; MOS Clock Timers
- Mobile Communications
- System control and monitoring
- Window Comparators
- Motor drives
