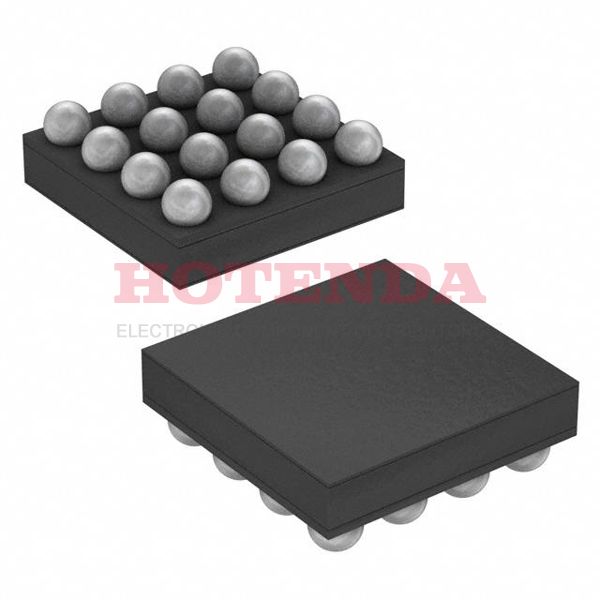

Name: MAX8649AEWE+T
Brand: Maxim Integrated
SKU: MAX8649AEWE+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-UFBGA, WLCSP
Number of Pins	16
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2011
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Subcategory	Switching Regulator or Controllers
Technology	BICMOS
Terminal Position	BOTTOM
Terminal Form	BALL
Terminal Pitch	0.5mm
Base Part Number	MAX8649
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	5.5V
Output Voltage	1.38V
Output Type	Programmable
Max Output Current	1.8A
Operating Supply Voltage	5.5V
Voltage - Input (Min)	2.5V
Input Voltage-Nom	3.6V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Voltage - Output (Min/Fixed)	0.75V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	3.25MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Height Seated (Max)	0.69mm
Length	2.045mm
Width	2.045mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MAX8649AEWE+T Product Details

MAX8649AEWE+T Overview

For optimal performance, this voltage regulator makes use of the Tape & Reel (TR) package. In this voltage regulator, there are a total of 16 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. In order to save space, this harley voltage regulator is available in the 16-UFBGA, WLCSP package. There are 1 outputs configured on this voltage regulator 12v. There are output pins on this DC DC switching regulator that generate Programmable output. Surface Mount-mounting is compatible with this switching regulator. The operating temperature should be kept at -40°C~85°C TA when the voltage regulator 12v is in operation. This DC-DC switching regulator has a switching frequency of 3.25MHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 2.5V. As a result, the output voltage of the voltage regulator 12v (Min/Fixed) is 0.75V. Voltage regulator has a maximum input voltage of 5.5V. In order to meet the operation requirements,voltage regulator is designed to provide a nominal input voltage of 3.6V. There is a subcategory called Switching Regulator or Controllers that includes this voltage regulator. The MAX8649 family of DC/DC regulators includes this DC/DC regulator. The voltage DC DC switching regulator can produce is 1.38V volts. There are 16 pins that are used for the operation of the voltage regulator 12v. The maximum output current reaches 1.8A A to meet the switching regulator operation requirements. 5.5V is the supply voltage for this DC-DC switching regulator.
