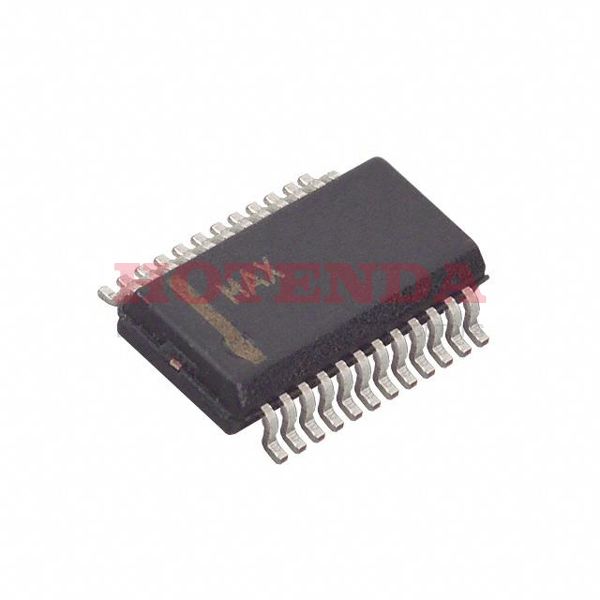

Name: MAX8529EEG+T
Brand: Maxim Integrated
SKU: MAX8529EEG+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	24-SSOP (0.154, 3.90mm Width)
Number of Pins	24
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Published	2007
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	24
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	Switching Regulator or Controllers
Technology	BICMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.635mm
Base Part Number	MAX8529
Function	Step-Down, Step-Up/Step-Down
Number of Outputs	2
Output Voltage	18V
Output Type	Transistor Driver
Input Voltage-Nom	5V
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Output Configuration	Positive
Output Current	6A
Voltage - Supply (Vcc/Vdd)	4.75V~23V
Control Features	Current Limit, Enable, Frequency Control, Reset
Input Voltage (Min)	4.75V
Topology	Buck, Buck-Boost
Control Mode	VOLTAGE-MODE
Frequency - Switching	600kHz~1.2MHz
Input Voltage (Max)	5.5V
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Switcher Configuration	PUSH-PULL
Max Frequency	1.38MHz
Duty Cycle	90 %
Height Seated (Max)	1.73mm
Length	8.65mm
Width	3.9mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX8529EEG+T Product Details

MAX8529EEG+T Overview

With its 24-SSOP (0.154, 3.90mm Width) package, the switching controller fits the needs of most applications. For outputs of 2, this dc motor controller is suitable. Tape & Reel (TR) solid enclosure protects the pmic. It is capable of handling Transistor Driver dc switching's outputs (s). This dc control operates at 4.75V~23V and has a 4.75V~23V supply voltage. Worked in a -40°C~85°C TA dc switcher before. In this switching controller, the switch can be set to 600kHz~1.2MHz. The Surface Mount allows it to be used for dc dc regulator in general. In order to control switching efficiently, the dcdc regulator features Current Limit, Enable, Frequency Control, Reset. DUAL SWITCHING CONTROLLER analog IC connects the switch converters. Switching converters are designed with the terminal (s) at position DUAL . The 24 terminations can be used for a wide range of dc switching. A few of the control techniques these dc dc converter ics adapt include PULSE WIDTH MODULATION. A DC switcher's nominal voltage of 5V is input. Searching "MAX8529" will return other relevant dc to dc converter ics. 24 pins are on switching converter. There is a particular type of Switching Regulator or Controllers in switching converter. Input voltage of dc dc voltage regulator should be 4.75V. Based on the test statistics, DC regulator outputs voltage 18V. It should be noted that the dc to dc regulator only accepts 5.5V voltage as input voltage. If you are starting a new project, you should note the dc dc regulator's typical output current is 6A. In most applications and prototype designs, DC switcher is qualified as a Surface Mount. There is a maximum frequency of 1.38MHz on this dc regulators.
