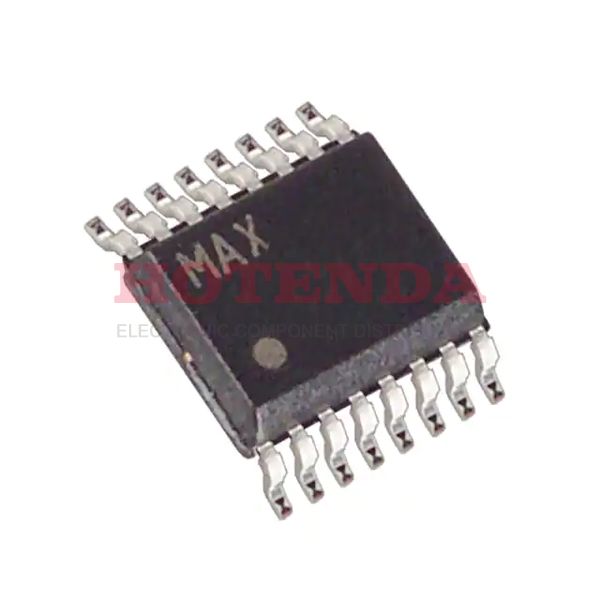

MAX8505EEE+TG38 Overview
Space savings are achieved by placing this voltage regulator in the 16-SSOP (0.154, 3.90mm Width) package. There are 1 outputs on DC DC switching regulator. Adjusting voltage regulator's output pins generate Adjustable output. There is a switching regulator that is compatible with the Surface Mount mounting. As long as its operating temperature is -40°C~85°C TA, dc to dc voltage regulator should perform well. There is a switching frequency of 500kHz 1MHz for this voltage regulator 12v. Input voltage 2.6V is the dc to dc voltage regulator's minimum input voltage required for operation of the voltage regulators. The output voltage (Min/Fixed) of this voltage regulator 12v is 0.8V. This voltage regulator 12v offers maximum design flexibility with an output current of 3A. The maximum input voltage of this voltage regulator 12v is 5.5V. On the basis of the maximum output voltage of 4.675V, adjusting voltage regulator can be operated easily.
MAX8505EEE+TG38 Features
1 outputs
MAX8505EEE+TG38 Applications
There are a lot of Maxim Integrated
MAX8505EEE+TG38 Voltage Regulators applications.
- Automation technology
- CMM
- Various precision measuring instruments
- Various precision measuring detectors
- Flaw detection equipment
- Balance equipment
- Industrial robots
- Industrial controllers
- Die casting equipment
- Injection molding machinery
