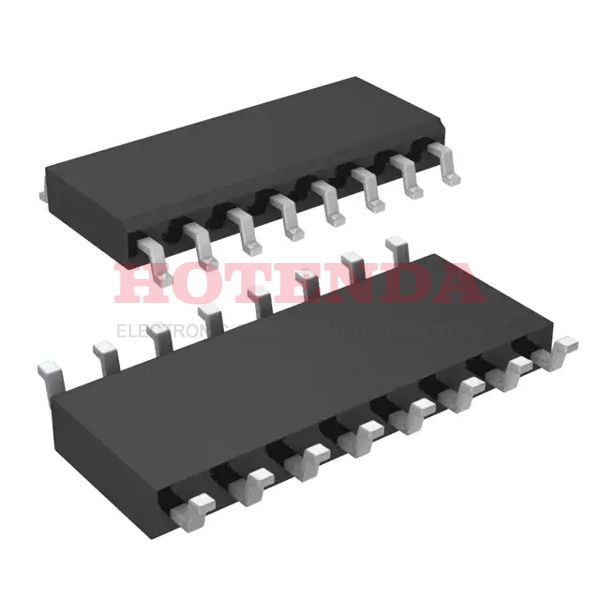

Name: MAX8214BCSE+T
Brand: Maxim Integrated
SKU: MAX8214BCSE+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154, 3.90mm Width)
Surface Mount	YES
Operating Temperature	0°C~70°C TA
Packaging	Tape & Reel (TR)
Published	1997
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Multi-Voltage Supervisor
Terminal Finish	TIN
Additional Feature	4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING
Max Power Dissipation	696mW
Technology	CMOS
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	1.27mm
Base Part Number	MAX8214
Output	Push-Pull, Totem Pole
Pin Count	16
JESD-30 Code	R-PDSO-G16
Number of Channels	5
Max Supply Voltage	11V
Min Supply Voltage	2.7V
Operating Supply Current	16μA
Adjustable Threshold	NO
Watchdog Timer	No
Reset	Active High/Active Low
Voltage - Threshold	5Adjustable Threshold Voltages
Number of Voltages Monitored	5
Reset Timeout	<1ms Minimum
Supply Current-Max (Isup)	0.033mA
Length	9.9mm
Width	3.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX8214BCSE+T Product Details

MAX8214BCSE+T Overview

As you can see, this power management is mounted through 16 terminals. A Tape & Reel (TR) package is used to package the power management. In this IC power you will find 1 functions for you to refer to. Power management consists of 5 channels, each of which can be used independently. Please refer to power management for 16-SOIC (0.154, 3.90mm Width) functions. With power management, you get a lot of benefits that you won't find in other Multi-Voltage Supervisor products. According to the specification, the package's peak reflow temperature is specified to be 260. During operation, the power ic is supplied with a voltage of 5V. Power management conducts at a voltage of 5. In total, it has 16 pins on IC management. A voltage (Vsup) that doesn't fall below 2.7V as the minimum supply voltage (Vsup) should be applied to this IC power in order to ensure its proper operation. In this PMIC, the maximum supply voltage (Vsup) should not exceed 11V volts. Power management' mounting is recommended to be done with the Surface Mount type of mounting. The temperature of the supervisors should be set to this range: 0°C~70°C TA. As a result of this supervisor's operation, the output voltage is Push-Pull, Totem Pole. For this power management, there is an 16μA volt supply current. Power management is also possible to add other features such as 4 PRECISION VOLTAGE COMPARATOR FOR UNDERVOLTAGE/OVERVOLTAGE MONITORING to name a few. For similar manage ics search of the manufacturer, you can always refer to MAX8214, the base PMIC number.
