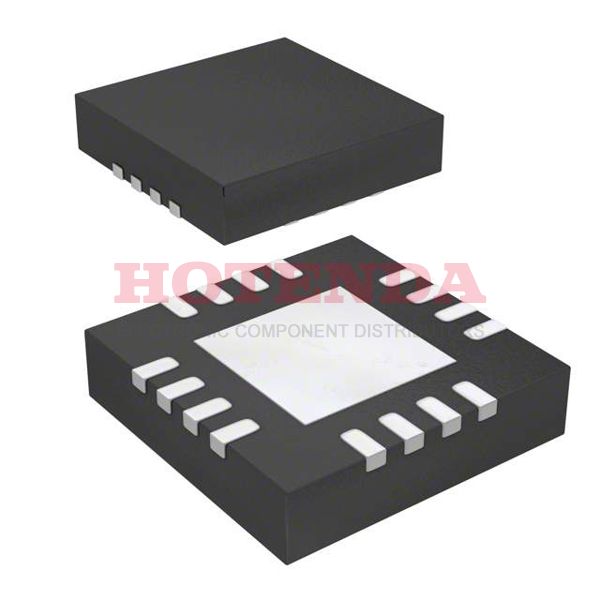

Name: MAX6888RETE+
Brand: Maxim Integrated
SKU: MAX6888RETE+
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Number of Pins	16
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2007
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Multi-Voltage Supervisor
Terminal Finish	Matte Tin (Sn)
Additional Feature	MANUAL RESET INPUT
Subcategory	Power Management Circuits
Max Power Dissipation	1.667W
Technology	BICMOS
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	0.8mm
Base Part Number	MAX6888
Output	Open Drain or Open Collector
Pin Count	16
Power Supplies	3/5V
Number of Channels	6
Max Supply Voltage	5.8V
Min Supply Voltage	2.7V
Operating Supply Current	900μA
Adjustable Threshold	YES
Watchdog Timer	Yes
Reset	Active Low
Voltage - Threshold	Adjustable/Selectable
Number of Voltages Monitored	4
Reset Timeout	180ms Minimum
Supply Current-Max (Isup)	1.2mA
Undervoltage Threshold	527mV
Overvoltage Threshold	673mV
Height Seated (Max)	0.8mm
Length	5mm
Width	5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX6888RETE+ Product Details

MAX6888RETE+ Overview

This voltage supervisor has a total of 16 mounting terminals that can be used for mounting. Packaged in the form of a Tube, power management is easy to use. The purpose of this IC management is to provide you with a reference of 1 functions. There are 6 channels on this power managment ic that can be found in a series. As a reference, this IC power includes 16-WQFN Exposed Pad functions for your convenience. There are a number of benefits that this PMIC has in common with other Multi-Voltage Supervisor manage ics. As specified in the package specification, the peak reflow temperature of the package is set at 260. When a supply voltage of 5V is applied to the power ic, it conducts. IC management is possible to find a succession of 4 voltages that have been checked. By Surface Mount, IC management has been mounted. It is possible to subcategorize this power ic as a Power Management Circuits chip. It has a total of 16 pins that are attached to IC management. Power managment ic pin count is 16. It is recommended that Vsup should not be less than 2.7V for this IC power. The supply voltage (Vsup) should not exceed 5.8V volts in this IC power. Surface Mount is the recommended mounting type. It is recommended to set the supervisor's temperature to this range: -40°C~85°C TA. As this power managment ic operates, it is able to produce an output voltage of Open Drain or Open Collector. The supervisor's supply current is specified to 900μA. Additionally, IC management are a variety of features, for example [0], to name a few. If you want to search for similar IC managements of this manufacturer, you can always refer to MAX6888, which is the base power ics number. In order to operate this power management, it requires 3/5V volts of power.
