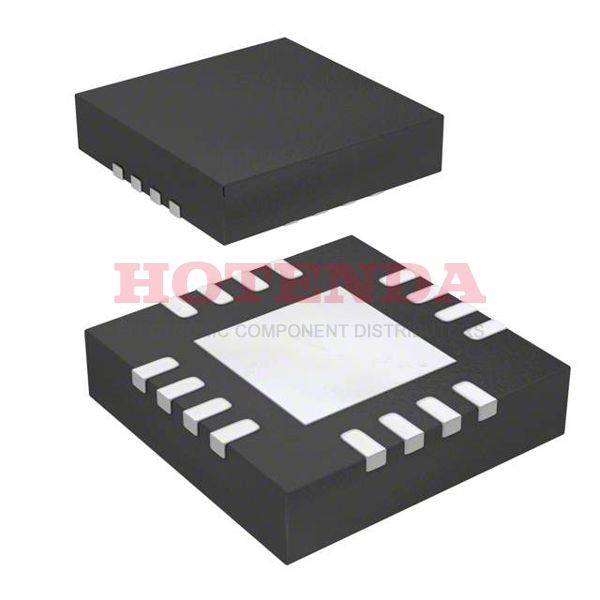

Name: MAX6887RETE+
Brand: Maxim Integrated
SKU: MAX6887RETE+
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Number of Pins	16
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Published	2010
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Multi-Voltage Supervisor
Terminal Finish	Matte Tin (Sn)
Additional Feature	MANUAL RESET INPUT
HTS Code	8542.39.00.01
Subcategory	Power Management Circuits
Max Power Dissipation	1.667W
Technology	BICMOS
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	0.8mm
Base Part Number	MAX6887
Output	Open Drain or Open Collector
Pin Count	16
Power Supplies	3/5V
Number of Channels	6
Max Supply Voltage	5.8V
Min Supply Voltage	2.7V
Operating Supply Current	900μA
Adjustable Threshold	YES
Watchdog Timer	Yes
Reset	Active Low
Voltage - Threshold	6 Selectable Threshold Combinations
Number of Voltages Monitored	6
Reset Timeout	180ms Minimum
Supply Current-Max (Isup)	1.2mA
Undervoltage Threshold	527mV
Overvoltage Threshold	673mV
Height Seated (Max)	0.8mm
Length	5mm
Width	5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX6887RETE+ Product Details

MAX6887RETE+ Overview

This power management consists of 16 mounting terminals on which it can be mounted. Tube-packaging is used. In this PMIC, you can find 1 functions for your reference. Power management consists of 6 channels, each of which can be used independently. Please refer to power management for 16-WQFN Exposed Pad functions. There are a number of benefits that this PMIC has in common with other Multi-Voltage Supervisor manage ics. Packages are specified to have an average peak reflow temperature of 260. When 5V is applied to the power ic, it conducts. IC management conducts in a 6-voltage supply. Surface Mount is the one that mounts power management. As a subcategory, this PMIC chip can be categorized as Power Management Circuits. In total, it has 16 pins on IC management. Power managment ic pin count is 16. It is recommended that the minimum supply voltage (Vsup) for this IC management should not be less than 2.7V volts. During this IC power, the maximum supply voltage (Vsup) should not exceed 5.8V volts. A Surface Mount mounting type is recommended. Temperature setting for the supervisors should be -40°C~85°C TA. During normal operation, this power managment ic can generate Open Drain or Open Collector of output voltage. There is a 900μA supply current present in the power management. Additionally, IC management are a variety of features, for example [0], to name a few. For similar manage ics search of the manufacturer, you can always refer to MAX6887, the base PMIC number. The power management must be powered by 3/5V volts to function properly.
