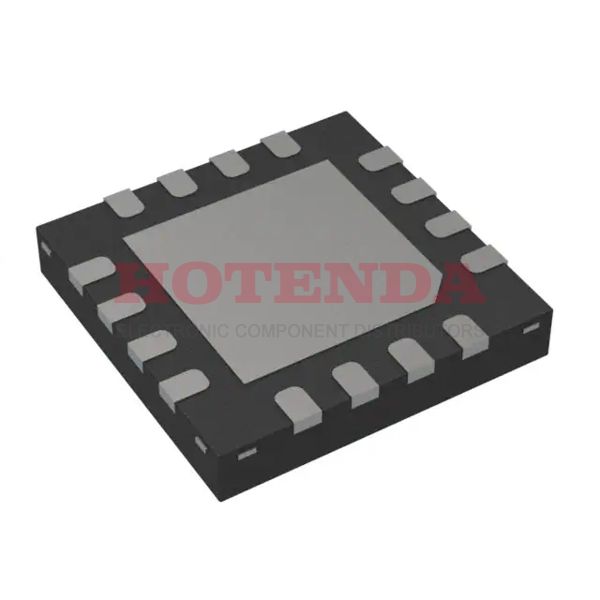

MAX5974EETE+G3U Overview
This ac to dc converter is included in the package 16-WFQFN Exposed Pad .In Tube case, the ac dc converter is available.In this case, the AC/DC converter is mounted in the way of Surface Mount .The ac dc converter should be operated at a temperature of -40°C~85°C TA °C to deliver its optimal performance.The AC DC converter uses a type SWITCHING CONTROLLER analog integrated circuit.When the switching frequency reaches 100kHz~600kHz , the process is complete.Supply voltage (Vcc/Vdd) does not need to exceed 7V~26V .Surface Mount is the recommended mounting method for the ac dc converters.It has been set to 1A for the output current.When the supply voltage is 16.5V , the interface IC conducts.
MAX5974EETE+G3U Features
Packaged with 16-WFQFN Exposed Pad
Switching Frequency at 100kHz~600kHz
Output Current at 1A
Operating Supply Voltage at the range of 16.5V
MAX5974EETE+G3U Applications
There are a lot of Maxim Integrated MAX5974EETE+G3U AC DC Converters applications.
- Universal input AC/DC adapters (15W - 45W)
- Laptops and personal digital assistants
- Remotely-controlled appliances
- Set-top boxes
- RCC SMPS
- Auxiliary Power Supply
- Cellular phone chargers
- Air conditioners
- Replacements for bulky plug-in transformers
- Automotive Infotainment
