MAX421EWE+T Overview

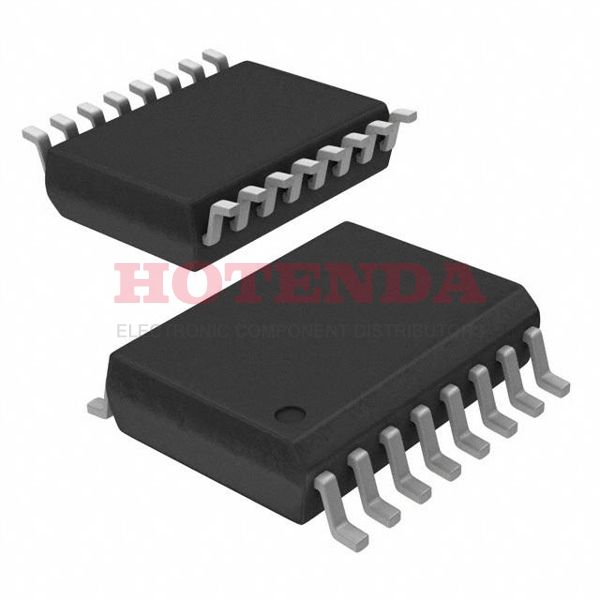

The linear amplifier is packaged in a 16-SOIC (0.295, 7.50mm Width) case. This is a Chopper (Zero-Drift) type op amp. Linear amplifier is delivered in a Tape & Reel (TR) case. The number of terminations approaches 16. Please take in mind that this instrumentation amplifier should be run at 15V. To be specific, this instrumentation amplifier is a type of Operational Amplifier. Regarding input offset voltage, op amp rates 5μV. Surface Mount is the recommended mounting type for this linear amplifier. With regard to operating temperature, this op amp functions well at -40°C~85°C. Voltage gain should remain at 150dB. There are 1 circuits on this op amp. It is recommended that this electronic component be used with an 1.3mA supply.
MAX421EWE+T Features
supply voltage of 15V
150dB voltage gain
MAX421EWE+T Applications
There are a lot of Maxim Integrated
MAX421EWE+T Instrumentational OP Amps applications.
- Inverse/same-phase proportional circuit
- Addition operation circuits
- Subtraction operation circuits
- single/dual op amp sum and difference circuits
- Integrator circuits
- Differentiator circuits
- Logarithmic operation circuits
- Exponential operation circuits
- Multiplication circuits
- Division circuits
