MAX414BEPD Overview

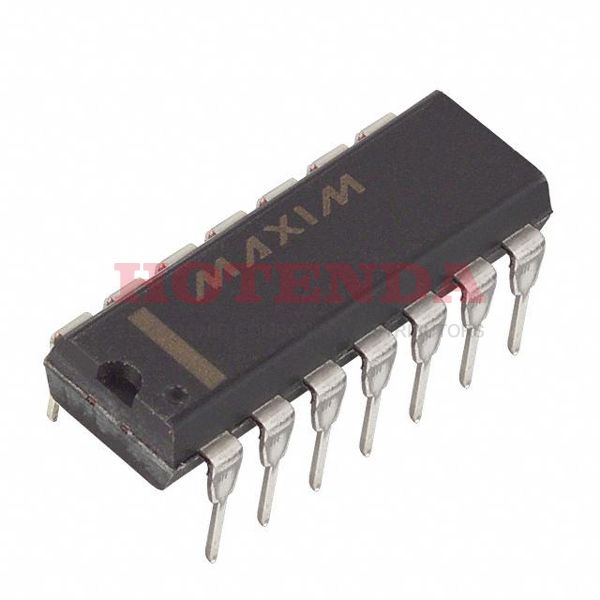

It is packaged in an 14-DIP (0.300, 7.62mm)-case that protects the operational amplifiers from damage. This is a General Purpose type op amp. The case in which buffer amplifier is delivered is called a Tube case. It is estimated that there will be at least 14 terminations this year. Buffer amplifier has a total of 14 pins. Please take in mind that op amp should be run at 5V. There are two types of Operational Amplifier op amps in this case, and this device falls into one of them. With regard to input offset voltage, instrumentation amplifier is rated at 150μV. Through Hole is the recommended mounting type of operational amplifiers. In terms of operating temperatures, this buffer amplifier works very well at a temperature of around -40°C~85°C . It is possible to operate this buffer amplifier from a supply current of 2.5mA . You should keep the voltage gain at 122dB for the time being. There are 4 circuits on this op amp. The operating supply voltage of the buffer op amp is rated at 9V.
MAX414BEPD Features
14 Pins
supply voltage of 5V
122dB voltage gain
MAX414BEPD Applications
There are a lot of Maxim Integrated MAX414BEPD Instrumentational OP Amps applications.
- Weak signal detection
- earphone
- Strain gauges
- Home audio systems
- Industrial control system
- Portable docking station
- Power generator
- Polarized electrodes
- Thermocouples
- pH (acidity)
