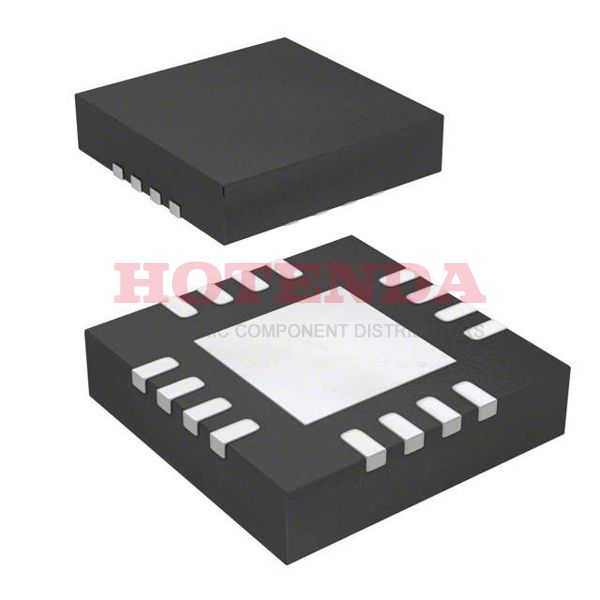

Name: MAX3227ECTE+T
Brand: Maxim Integrated
SKU: MAX3227ECTE+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Number of Pins	16
Operating Temperature	0°C~70°C
Packaging	Tape & Reel (TR)
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	MATTE TIN
Subcategory	Line Driver or Receivers
Technology	BICMOS
Voltage - Supply	3V~5.5V
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	0.8mm
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	MAX3227
Pin Count	16
Operating Supply Voltage	5.5V
Power Supplies	3.3/5V
Number of I/O	4
Nominal Supply Current	1mA
Propagation Delay	150 ns
Logic Function	Receiver, Transceiver
Data Rate	1Mbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	1/1
Driver Number of Bits	1
Receiver Number of Bits	1
Duplex	Full
Receiver Hysteresis	500mV
Number of Transceivers	1
Height Seated (Max)	0.8mm
Length	5mm
Width	5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MAX3227ECTE+T Product Details

MAX3227ECTE+T Overview

The enhanced 16-WQFN Exposed Pad package makes it an excellent LED driver.Tape & Reel (TR) package is used to mount this receiver.Since this part is a Transceiver can transceiver, a number of solutions have been able to utiliTransceivere it for various purposes.Any Surface Mount-type PCB or development board can be used with this wide receiver.This differential driver uses 3V~5.5V for power supply.Up to 1/1 receivers/drivers can be installed simultaneously on this electronic part.The operating temperature of this ic receiver is 0°C~70°C. It is primarily designed for applications with low temperatures.This line driver ic can operate efficiently with a supply voltage range of 3.3V.This wide receiver has 16 terminations for driving and receiving data signals.There are 16 pinouts available on this transceiver which are market standard.With the part number MAX3227 identifying the product type, temperature, package, etc., you can search with it to see more variants.An enhanced power dissipation driver IC with 16 pins.This package size decreases dramatically due to optical transceiver downsizing and high-density Surface Mount mounting technologies.This ic receiver provided a 1-bit resolution capability. As a rule of thumb, this receiver is typically specified with a resolution of 1 bits.As a result of the design of this transceiver module, the input voltage supply is designed to operate at 5.5V.3 volts.Line Driver or Receivers is a subcategory of this rf transceiver module.An 8-pin power supply is provided by this driver IC, which allows it to operate from an 3.3/5V-pin power supply.There are 1 transceivers in total that this module isolated transceiver implements.There are 4 serial I/Os on board this IC, and it has a standard VGA interface.
