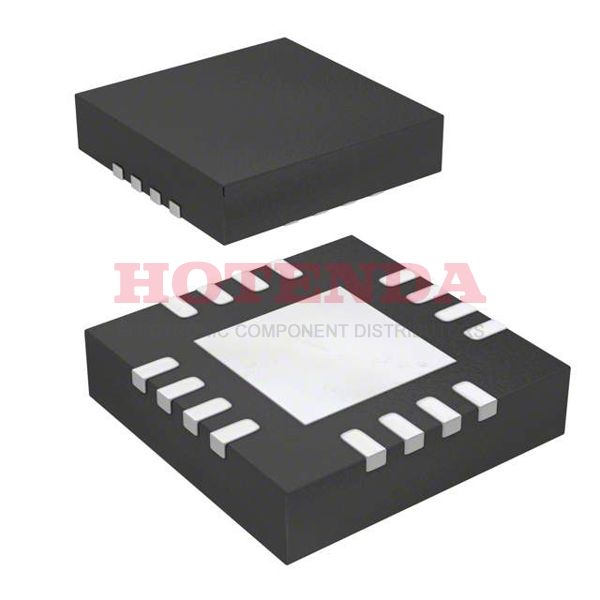

Name: MAX3226EETE+T
Brand: Maxim Integrated
SKU: MAX3226EETE+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	14 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-WQFN Exposed Pad
Number of Pins	16
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	TIN
Subcategory	Line Driver or Receivers
Technology	BICMOS
Voltage - Supply	3V~5.5V
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	3.3V
Terminal Pitch	0.8mm
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	MAX3226
Pin Count	16
Operating Supply Voltage	5.5V
Power Supplies	3.3/5V
Number of I/O	4
Nominal Supply Current	1mA
Propagation Delay	150 ns
Logic Function	Receiver, Transceiver
Data Rate	250kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	1/1
Driver Number of Bits	1
Receiver Number of Bits	1
Duplex	Full
Receiver Hysteresis	500mV
Number of Transceivers	1
Simplex/Duplex	Full Duplex
Height Seated (Max)	0.8mm
Length	5mm
Width	5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

MAX3226EETE+T Product Details

MAX3226EETE+T Overview

Due to the enhanced 16-WQFN Exposed Pad package, this driver IC is excellent for driving common LEDs.The receiver is packaged in a Tape & Reel (TR) package.As a Transceiver can transceiver, this part has enabled many applications to be served.A Surface Mount-type PCB or development board can be used to place this wide receiver.This differential driver uses 3V~5.5V for power supply.It is possible to have up to 1/1 receivers/drivers in use simultaneously with this electronic part.IC receiver's like this are designed for applications requiring a -40°C~85°C operating temperature.An operating voltage range of 3.3V is suitable for this line driver ic.In this wide receiver, 16 terminations are integrated for driving and receiving signals from data.This transceiver is packaged with 16 market standard pinoutsMAX3226 is the base part number for this part, and it identifies the product type, temperature, packaging, etc., so you can search for more variants with it.An enhanced power dissipation control driver IC featuring 16 pins.As a result of optical transceiver downsizing and high-density Surface Mount mounting technologies, its package size has been greatly reduced.An important feature of this ic receiver was its 1-bit resolution capability.Typically, the resolution of this receiver is specified to be 1 bits.This transceiver module is designed to operate from an input voltage supply of 5.5V.A subcategory named Line Driver or Receivers can be used to group this rf transceiver module.An 8-pin power supply is provided by this driver IC, which allows it to operate from an 3.3/5V-pin power supply.Transceivers implemented by this IC total 1 in total.An IC with 4 standard serial I/Os is provided in this package.
