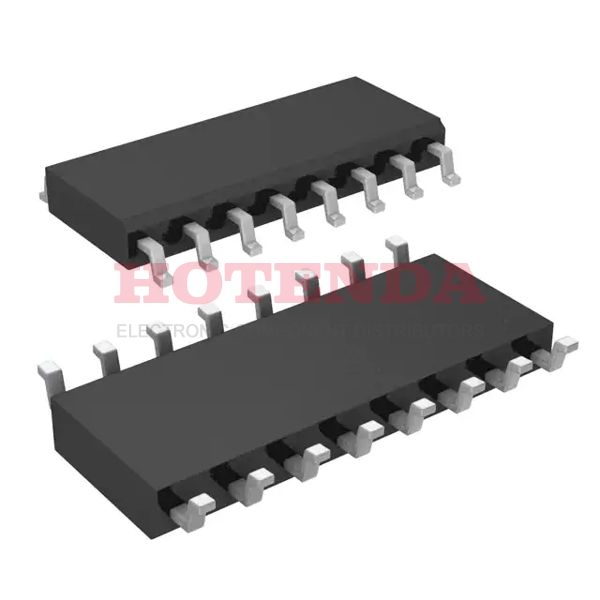

Name: MAX243ESE+T
Brand: Maxim Integrated
SKU: MAX243ESE+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.154, 3.90mm Width)
Surface Mount	YES
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	Matte Tin (Sn)
Additional Feature	EXTERNAL CHARGE PUMP
HTS Code	8542.39.00.01
Subcategory	Line Driver or Receivers
Technology	CMOS
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	2
Supply Voltage	5V
Terminal Pitch	1.27mm
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MAX243
Pin Count	16
JESD-30 Code	R-PDSO-G16
Qualification Status	Not Qualified
Power Supplies	5V
Supply Current-Max	10mA
Data Rate	200kbps
Output Characteristics	TOTEM-POLE
Differential Output	NO
Output Polarity	INVERTED
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	2/2
Driver Number of Bits	2
Receiver Number of Bits	2
Duplex	Full
Receiver Hysteresis	500mV
Interface Standard	EIA-232-E; TIA-232-E; V.28; V.24
Receive Delay-Max	1000 ns
Transmit Delay-Max	3500 ns
Output Low Current-Max	0.0032A
Out Swing-Min	10 V
High Level Input Current-Max	0.00004A
Height Seated (Max)	1.75mm
Length	9.9mm
Width	3.9mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX243ESE+T Product Details

MAX243ESE+T Overview
