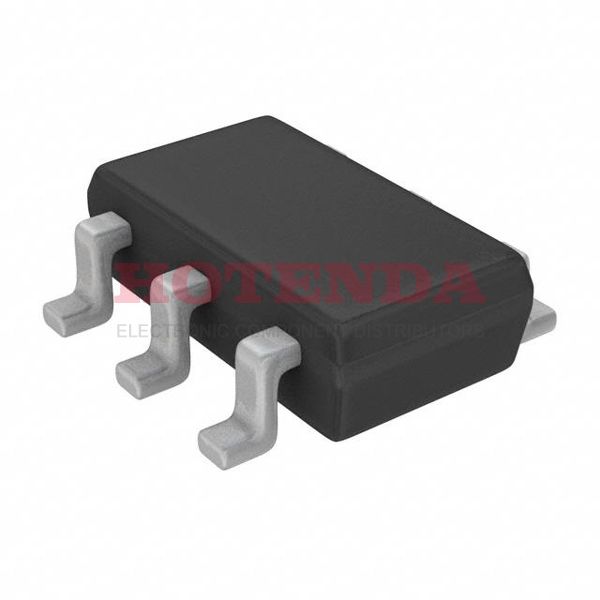

Name: MAX1963AEZT180+
Brand: Maxim Integrated
SKU: MAX1963AEZT180+
Availability: InStock

new-10%

MAX1963AEZT180+

Manufacturer part number:MAX1963AEZT180+

Manufacturer:Maxim Integrated

Description:Enable, Reset Fixed PMIC SOT-23-6 Thin, TSOT-23-6

Case Package:SOT-23

Datasheet:MAX1963AEZT180+ Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	SOT-23-6 Thin, TSOT-23-6
Number of Pins	6
Operating Temperature	-40°C~85°C TA
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Power Dissipation	727mW
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Current - Supply (Max)	90μA
Voltage - Input (Max)	3.6V
Output Voltage	1.8V
Output Type	Fixed
Output Configuration	Positive
Current - Output	300mA
Quiescent Current	140μA
Control Features	Enable, Reset
Accuracy	0.5 %
Number of Regulators	1
Min Input Voltage	1.62V
Protection Features	Over Current, Over Temperature, Short Circuit
Current - Quiescent (Iq)	140μA
Voltage Dropout (Max)	0.2V @ 300mA
PSRR	70dB (1kHz)
RoHS Status	ROHS3 Compliant

MAX1963AEZT180+ Product Details

MAX1963AEZT180+ Overview

In order to package the IC voltage regulator, a SOT-23-6 Thin, TSOT-23-6 case is used. This IC Regulator has a type of output called Fixed. There are 1 regulators implemented in this electroic component. Surface Mount can be adjusted in the Linear IC in order to vary the temperature range over which Linear Regulator operates. The IC voltage regulator must be maintained at -40°C~85°C TA degrees for it to function. As you can see, this regulator's output function is configured to be Positive. At present, it can produce an output of up to 300mA. Depending on the chip, 6 pins may be available. It operates in the 140μA Quiescent Current state.
