MAX1793EUE33+ Overview

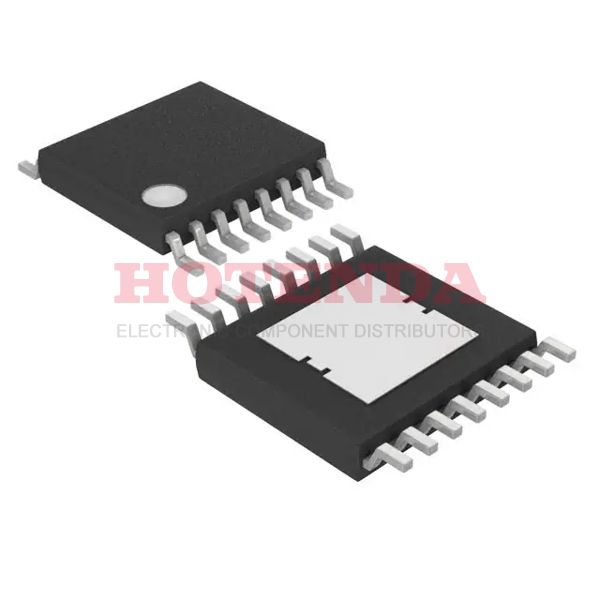

In the case of Tube cases, the regulater IC is delivered. Packaging of the Liner regulator IC takes the form of a 16-TSSOP (0.173, 4.40mm Width) Exposed Pad case. The PMIC chip has 16 terminations. Adjustable (Fixed) is the Voltage Regulator Chip's output type. Linear IC consists of 1 battery regulators. The range of operating temperatures of Surface Mount are programmable in the Voltage Regulator Chip, so that the temperature can be varied as desired. Keeping the temperature at -40°C~85°C TA degrees is necessary for this regulator to function. There is an output function of Positive configured for this regulator. The sum of the pins in this unit is 16. The part includes 1 outputs in order to ensure that the voltage regulator IC performs effectively and in a timely manner. This voltage regulator IC has a dropout voltage of 10 volts. On the chip, there are pins for the 16 axis. Here's the basic part number for this IC regulator: MAX1793. Upon reaching its maximal output current, 1A, it is able to satisfy the operation requirements. It operates in the 225μA Quiescent Current state. An 5.5V-volt supply voltage at the top is required.
MAX1793EUE33+ Features
210mV dropout voltage
MAX1793EUE33+ Applications
There are a lot of Maxim Integrated
MAX1793EUE33+ Linear Voltage Regulators applications.
- Switching regulator
- Multiple-power supply system
- Digital audio player
- Digital TV
- Smartcard
- Industrial equipment
- DVD and CD-ROM drive
- Quick charge protocols
- Measurement and control euipment
- Aging system
