Name: MAX17244ETERB+
Brand: Maxim Integrated
SKU: MAX17244ETERB+
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Additional Feature	ALSO OPERATES IN PFM CONTROL TECHNIQUE; ALSO AVAILABLE VOUT=5V
Technology	BICMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Terminal Pitch	0.8mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	MAX17244
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	36V
Output Voltage	3.3V
Output Type	Programmable (Fixed)
Voltage - Input (Min)	3.5V
Input Voltage-Nom	14V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	2.5A
Voltage - Output (Min/Fixed)	1V 3.3V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	400kHz~2.2MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Voltage - Output (Max)	10V
Height Seated (Max)	0.8mm
Length	5mm
Width	5mm
RoHS Status	ROHS3 Compliant

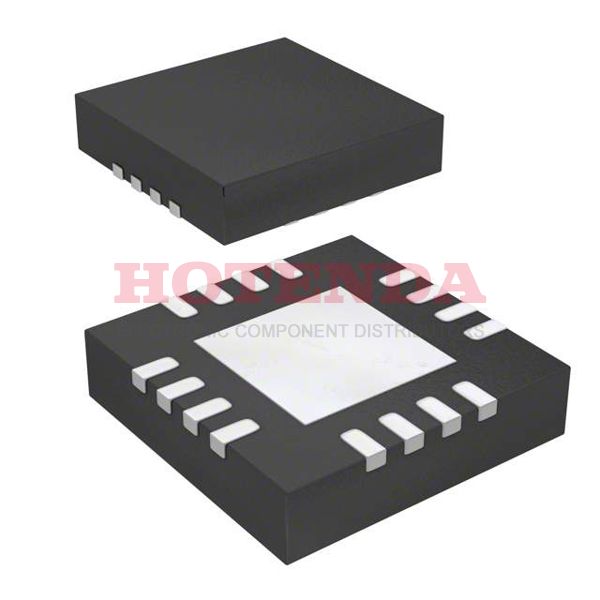

MAX17244ETERB+ Product Details

MAX17244ETERB+ Overview

As a result of the use of the Tube package, the performance of this voltage regulator is optimized. As you can see, this harley voltage regulator contains 16 terminations. There are two types of analog ICs on this voltage regulator. The first type is a SWITCHING REGULATOR-type IC. Space-saving 16-WFQFN Exposed Pad packages are available for this harley voltage regulator. There are 1 outputs configured on the voltage regulator. ICs such as this voltage regulator are capable of generating Programmable (Fixed) outputs through their output pins. The voltage regulator 12v fits the Surface Mount mounting hole. This voltage regulator 12v should operate at a temperature of -40°C~85°C TA when operating. 400kHz~2.2MHz is the switching frequency of this DC-DC switching regulator. A dc to dc voltage regulator's minimum input voltage of 3.5V is required for this voltage regulator to operate. The output voltage of this voltage regulator (Min/Fixed) amounts to 1V 3.3V volts. Featuring a maximum design flexibility of 2.5A, dc to dc voltage regulator has a maximum output current of 2.5A. The maximum input voltage of voltage regulator is 36V. As a result of its peak reflow temperature, this voltage regulator is virtually indestructible. To meet the switching regulator operation requirements, a nominal input voltage of 14V is provided. DC/DC regulators such as this one belong to the MAX17244 family of products. Voltage of voltage regulator can be delivered at 3.3V volts. 10V's maximal output voltage allows adjusting voltage regulator to operate easily. Switching regulators with the ALSO OPERATES IN PFM CONTROL TECHNIQUE; ALSO AVAILABLE VOUT=5V feature are more efficient and stable.
