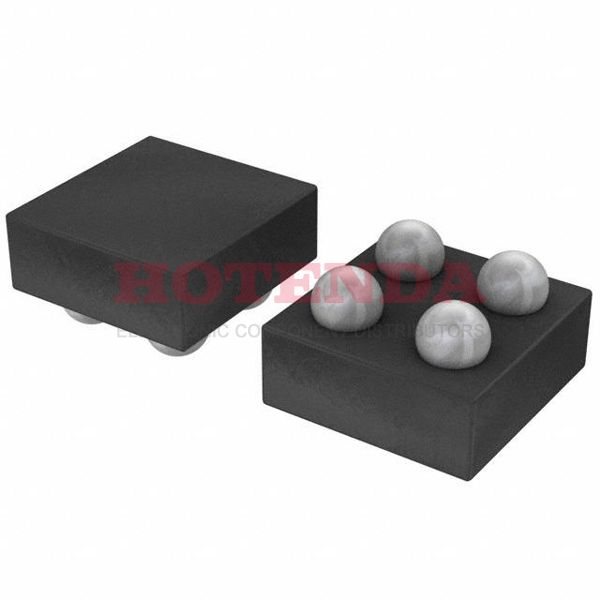

MAX16073RS22D1+T Overview
A total of 4 terminals are used to mount this power management. Tape & Reel (TR)-packaging is used. Please refer to power management for 4-WFBGA, CSPBGA functions. There are a lot of similarities between this IC power and other Simple Reset/Power-On Reset products. There is a voltage supply of 1 for the PMIC chip, and the chip conducts at that voltage. The power management is mounted by a Surface Mount-axis. There is a subcategory of this power ic known as Power Management Circuits. This power management system has 4 pins. In order for this PMIC to work correctly, the minimum supply voltage (Vsup) should be greater than 1.2V. There should be no more than 5.5V volts of maximum supply voltage (Vsup) in this power management. In this case, Surface Mount is the recommended mounting type. The supervisors should be set to the following temperature: -40°C~85°C. While in operation, this supervisor has a voltage output of Push-Pull, Totem Pole. It is always advisable to use MAX16073, the base supervisor number, when searching for similar PMICs from the manufacturer.
MAX16073RS22D1+T Features
Simple Reset/Power-On Reset type
Minimum supply voltage of 1.2V
MAX16073RS22D1+T Applications
There are a lot of Maxim Integrated MAX16073RS22D1+T Voltage Supervisors applications.
- Computer applications
- Data storage applications
- Detection of phase imbalance
- Microcontroller system
- Medical-specific isolation transformer
- Power distribution systems of CCU
- Analog circuit
- Battery cars
- Electronics installed in the vehicle
- Fire equipment power monitoring system
